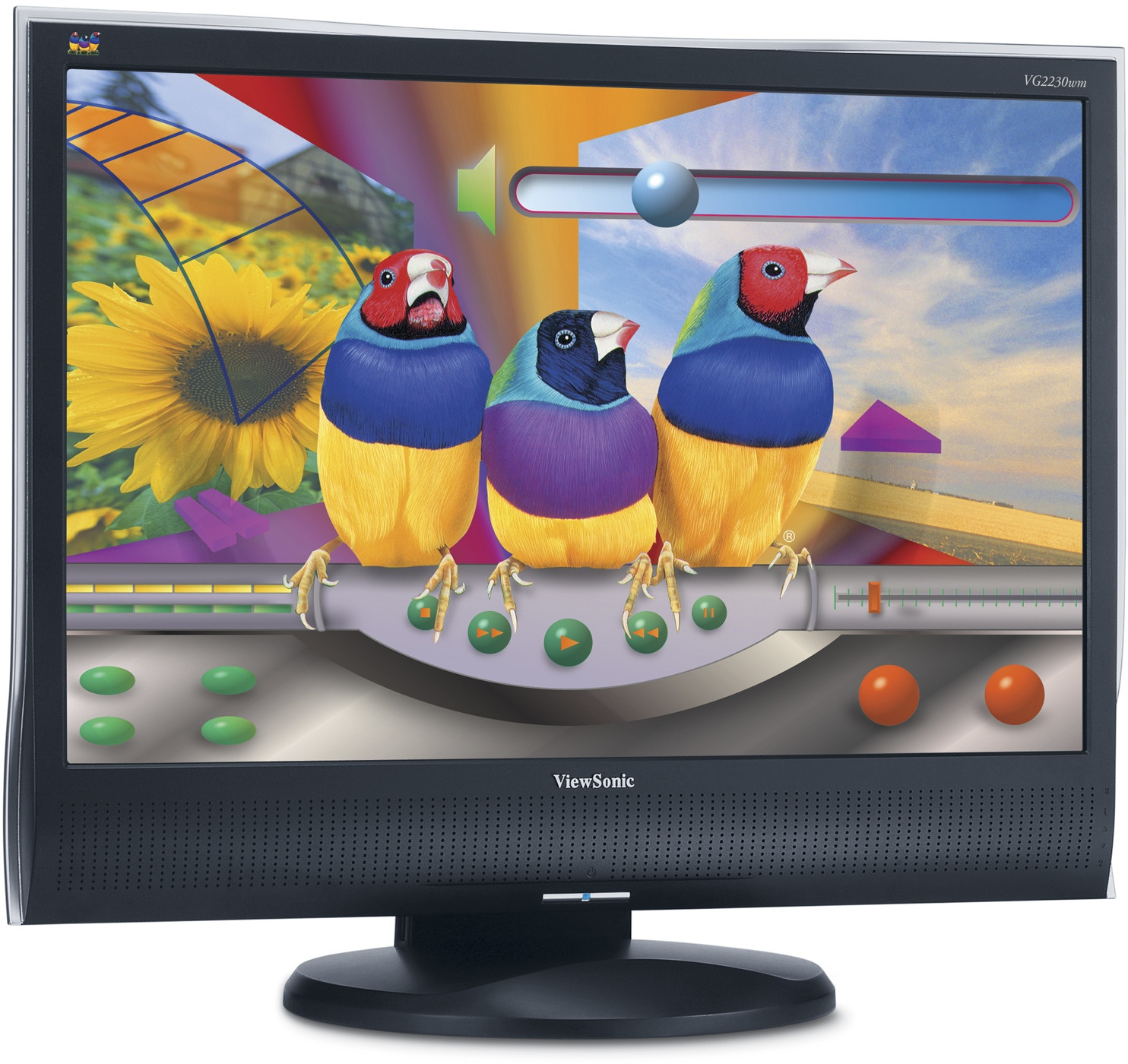

ViewSonic VG2230wm 56 cm / 22" WIDESCREEN GRAPHIC SERIES LCD WITH SWIVEL AND HEIGHT ADJUSTMENT

Wichtigste Eigenschaften

Produktübersicht

For big performance and even bigger productivity you need a big screen. The ViewSonic VG2230wm features large widescreen multimedia performance for a unique desktop experience. The 56 cm / 22" WIDESCREEN display allows you to view two documents side-by-side or work in two applications simultaneously and the 360° SWIVEL base allows you to share your view with co-workers. The 280cd/m² brightness and high 700:1 contrast ratio produce bright, crisp, detailed images whilst analogue and digital inputs ensure versatile connectivity options. Graphics professionals love the FAST 5MS VIDEO RESPONSE TIME that delivers blur-free, full motion video and crystal clear images. And with ERGONOMIC HEIGHT ADJUSTMENT and tilt, you’ll work comfortably for hours. The VG2230wm widescreen multimedia LCD delivers a complete visual experience to your desktop.

Besuchen Sie uns

www.viewsonic.com

COLORS

Black

LCD

Typ:	56 cm / 22" Wide TN colour TFT active matrix WSXGA+ LCD
Kontrastverhältnis:	700:1 (typ.)
Betrachtungswinkel:	170° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Helligkeit:	280cd/m² (typ.)
Anzeigefläche:	47.6cm horizontal x 29.8cm vertical, 55.9cm diagonal
Optimale Auflösung:	1680 x 1050@60Hz
Reaktionszeit:	5ms (off-on-off) (typ.)
Lichtquelle:	Long life, 60000 hrs. (typ.)
Panel-Oberfläche:	Anti-glare
Pixelabstand:	0.282mm
Farbtiefe:	16.7M colours (6-bit + 2-bit FRC)
Pixeltakt:	165MHz

KOMPATIBILITäT

PC: VGA up to 1680 x 1050 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced
ABMESSUNGEN

Physisch mit Fuß: 519 x 436-571 x 250

Physisch ohne Fuß: 519 x 392 x 60

Verpackung (B x H x T): 570 x 530 x 300

ZERTIFIKATE

TCO'03, GS, ERGO, ISO 13406-2 (pixel failure class II), CB, CE, GOST-R, UL, CUL, FCC-B, ICES-003, NOM, SASO, ENERGY STAR®, C-Tick, MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, WEEE, RoHS

LIEFERUMFANG

LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language)
AUDIO

Lautsprecher: 2 x 2 watt integrated stereo speakers
ANSCHLüSSE

Analog: 15-pin mini D-sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Stromversorgung: 3-pin AC plug (CEE22)

Audioeingang: 3.5mm stereo audio line-in
STROMVERSORGUNG

Spannung: AC 100– 240V, 50/60Hz (auto switch), internal power supply

Verbrauch: 43 watt (typ.), <1 watt in power save mode

BEDIENUNGSELEMENTE

Grundausstattung:

Power, menu [1], up, down, select [2], mute, volume up/down

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), audio adjust (volume, mute), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution
notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

BETRIEBSBEDINGUNGEN

Temperatur: 0°C – 40°C

Feuchtigkeit: 10% – 90% (non-condensation)
GEWICHT

Netto mit Fuß: 6.6kg

Brutto: 8.6kg
VIDEOEINGANG

Frequenz: Fh: 24~82kHz, Fv: 50~85Hz

Synchronisierung: H/V separated (TTL)

Analog: RGB analogue (0.7 Vp-p , 75 ohms)

Digital: DVI-D (TMDS, 100 ohm)
ENERGIEVERWALTUNG

Meets TCO’03 and ENERGY STAR® standards
SICHERHEIT

Kensington® security port
WANDHALTERUNG

VESA FDMI 100mm x 100mm
ERGONOMIE

Neigung: Down 5°, Up 20°

Schwenken: 360° swivel base

Höhenverstellung: 0~ 135mm

PC:	VGA up to 1680 x 1050 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced

Physisch mit Fuß:	519 x 436-571 x 250
Physisch ohne Fuß:	519 x 392 x 60
Verpackung (B x H x T):	570 x 530 x 300

Analog:	15-pin mini D-sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Stromversorgung:	3-pin AC plug (CEE22)
Audioeingang:	3.5mm stereo audio line-in

Spannung:	AC 100– 240V, 50/60Hz (auto switch), internal power supply
Verbrauch:	43 watt (typ.), <1 watt in power save mode

Temperatur:	0°C – 40°C
Feuchtigkeit:	10% – 90% (non-condensation)

Frequenz:	Fh: 24~82kHz, Fv: 50~85Hz
Synchronisierung:	H/V separated (TTL)
Analog:	RGB analogue (0.7 Vp-p , 75 ohms)
Digital:	DVI-D (TMDS, 100 ohm)

Neigung:	Down 5°, Up 20°
Schwenken:	360° swivel base
Höhenverstellung:	0~ 135mm

Netto mit Fuß:	6.6kg
Brutto:	8.6kg
