Klíčové Vlastnosti

Produkt Popis

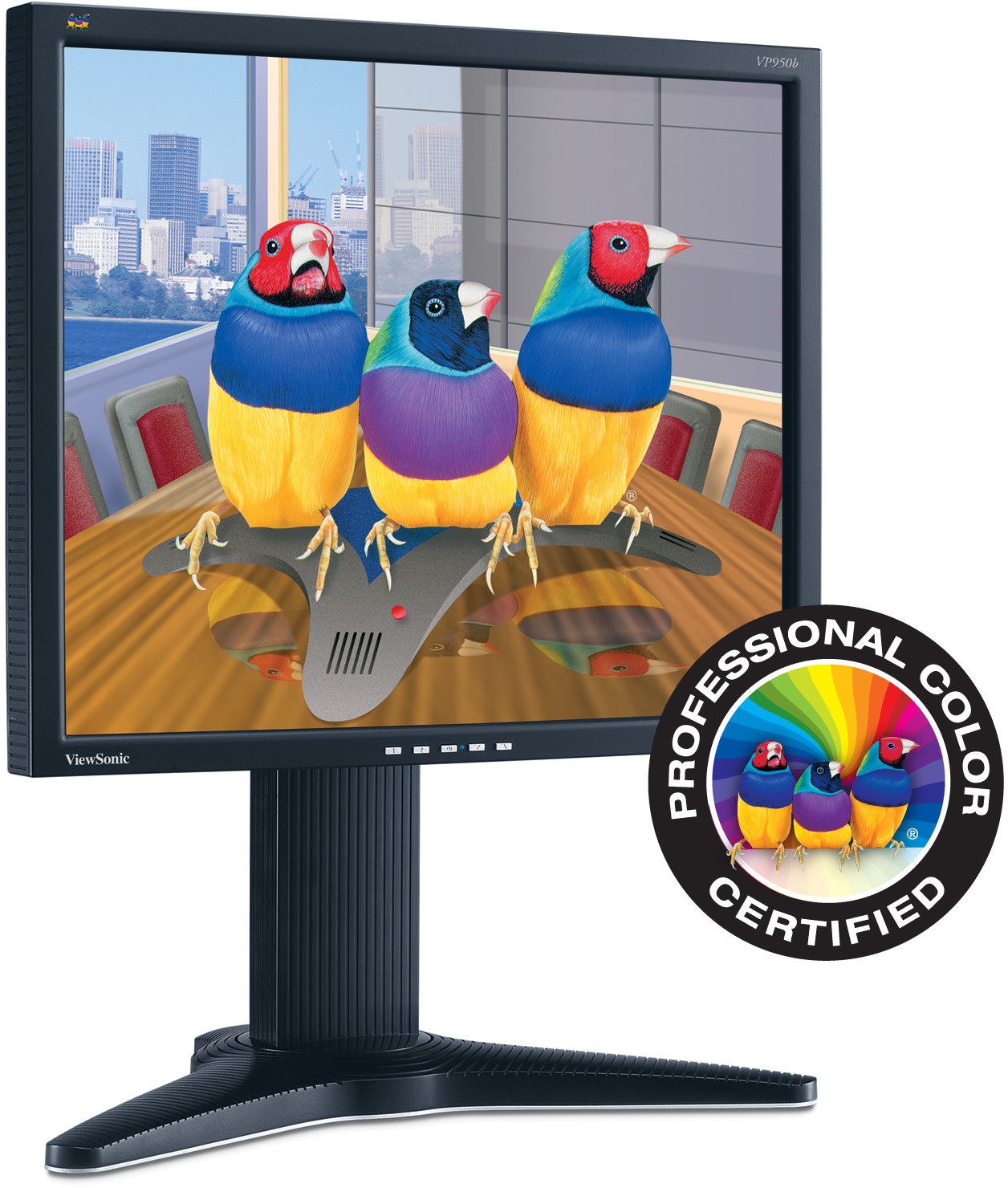

ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.
Navštivte nás
  • LCD
    Typ: 48cm / 19" TN colour TFT active matrix SXGA LCD
    Kontrastní poměr: 800:1 (typ.), 2000:1 DCR (typ.)
    Zobrazovací úhly: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Jas: 280cd/m2 (typ.)
    Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
    Optimum Resolution: 1280 x 1024@60Hz
    Doba odezvy: 2ms (grey-to-grey), 5ms (off-on-off, typ.)
    Světelný zdroj: Long life, 50000 hrs. (typ.)
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.294mm
    Colour Support: 16.7M colours supported (6-bit+2-bit HI FRC)
    Pixel Clock: 140MHz
    Barevný gamut: Wide colour gamut, 98% of NTSC
    PC: VGA up to 1280 x 1024 non-interlaced
    Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
    Physical With Stand: 412 x 391-510 x 279
    Physical Without Stand: 412 x 331 x 63
    W x H x D mm: 470 x 523 x 195
    LCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
    Analogue: 15-pin mini D-sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Výkon: 3-pin plug (CEE22)
    USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0
    Napětí: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
    Spotřeba: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode
    Basic: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
    ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
    information (resolution, H/V frequency, pixel clock, model number, serial
    number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
    (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock
    Teplota: 0° to 40°
    Vlhkost: 10% to 90% (non-condensation)
    Net With Stand: 5.6kg
    Net Without Stand: 4.4kg
    Hrubý: 7.5 kg
    Frequency: Fh: 24-82kHz, fv: 50-85Hz
    Sync: H/V separated (TTL), composite, sync on green
    Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
    Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI)
    Meets TCO’03 and ENERGY STAR standards
    Kensington security port
    VESA FDMI 100mm x 100mm
    Naklápění: Down 5°, up 20°
    Otočný: 120° (60° left/right)
    Height Adjustment: 0~120mm
    Pivot: 0°~90°
