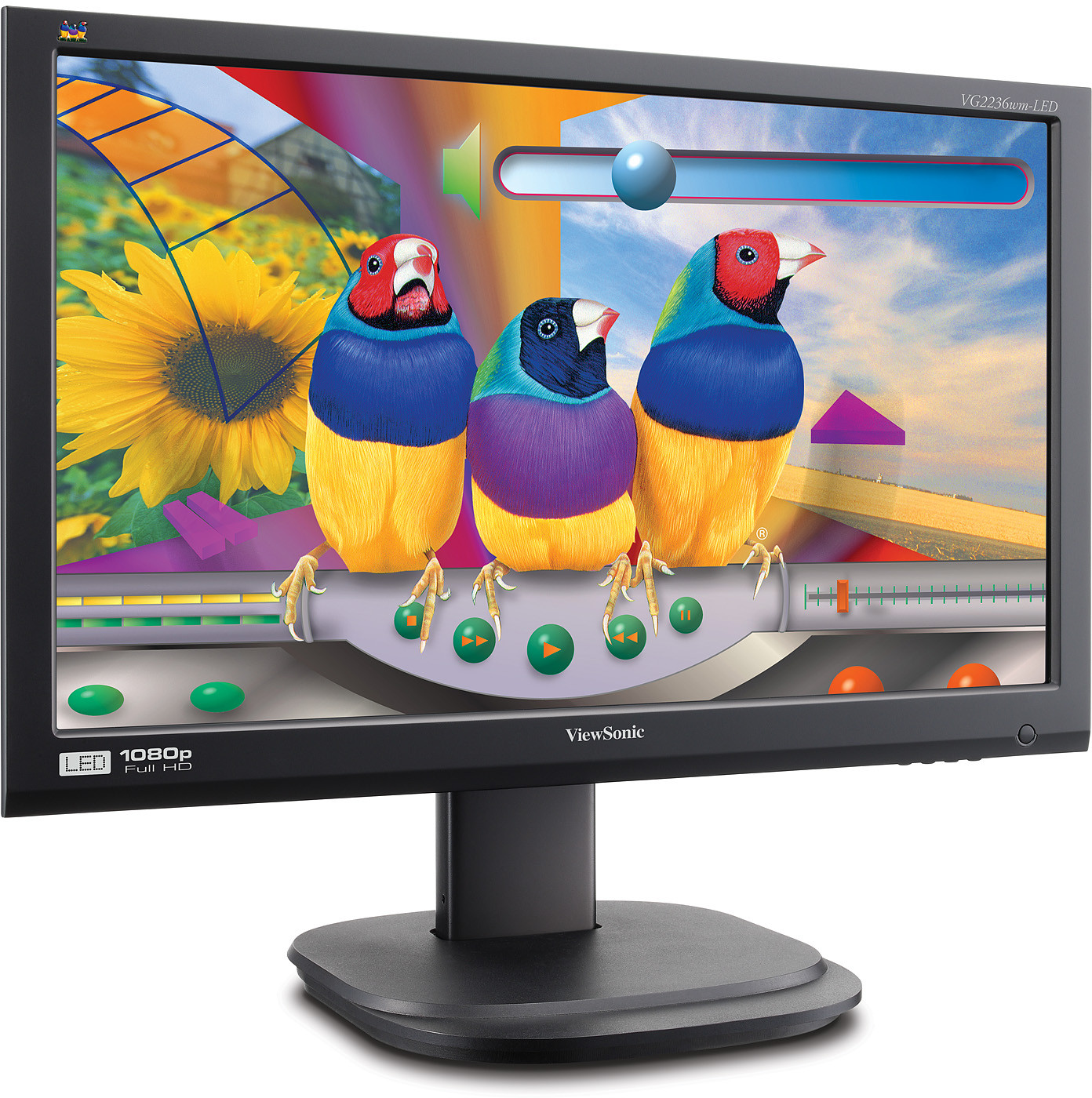

ViewSonic VG2236wm-LED 55cm/21.5" WIDESCREEN LED MONITOR

LCD

Kontrastní poměr:	1000:1 (typical)
Zobrazovací úhly:	170° (H), 160° (V)
Jas:	250cd/m² (typical)
Optimum Resolution:	1920×1080
Doba odezvy:	5ms (typical)
Světelný zdroj:	25,000 Hours (min.)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.24825 mm x 0.24825 mm (H×V)
Size:	55cm/21.5”wide Colour TFT Active Matrix LCD aspect ratio
Poměr dynamického kontrastu:	20,000,000:1

COMPATIBILITY

PC: VGA up to 1920x1080 Non Interlaced

Mac®: 1920x1080 Non Interlaced
DIMENSIONS

Fyzicky (VxŠxH): 521.21mm (W) x 427.41 mm (H) x 239.2mm (D)
INPUT

Sync: H/V separated (TTL), composite sync-on-green

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–83kHz / 50–75Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Digital: DVI

Audio: 1 x 3.5 mm

Výkon: 3-pin plug (CEE22)
POWER

Napětí: AC 100-240V (Universal); 50/60Hz

Spotřeba: 22 W (typical)

Save Mode (W): <= 0.1W

CONTROLS

Basic:	[1], [2], power button, Down[▼], Up[▲]
OSD:	Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, Colour Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B], Information Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, OSD Pivot, Auto power off, Memory Recall

VESA MOUNT COMPLIANT

100mm× 100mm
ERGONOMICS

Naklápění: 20˚~-5˚

Otočný: 360˚

Height Adjustment: 0~135mm

Pivot: 90˚
AUDIO

Speakers: 2x2W
WEIGHT

Čistá hmotnost: 4.4 Kg (9.7lbs
OPERATING CONDITIONS

Vlhkost: 20 - 90 (%)

Teplota: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1920x1080 Non Interlaced
Mac®:	1920x1080 Non Interlaced

Sync:	H/V separated (TTL), composite sync-on-green
Analogue:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency:	24–83kHz / 50–75Hz

Vlhkost:	20 - 90 (%)
Teplota:	0 - 40 (°C) / 32 - 104 (°F)
