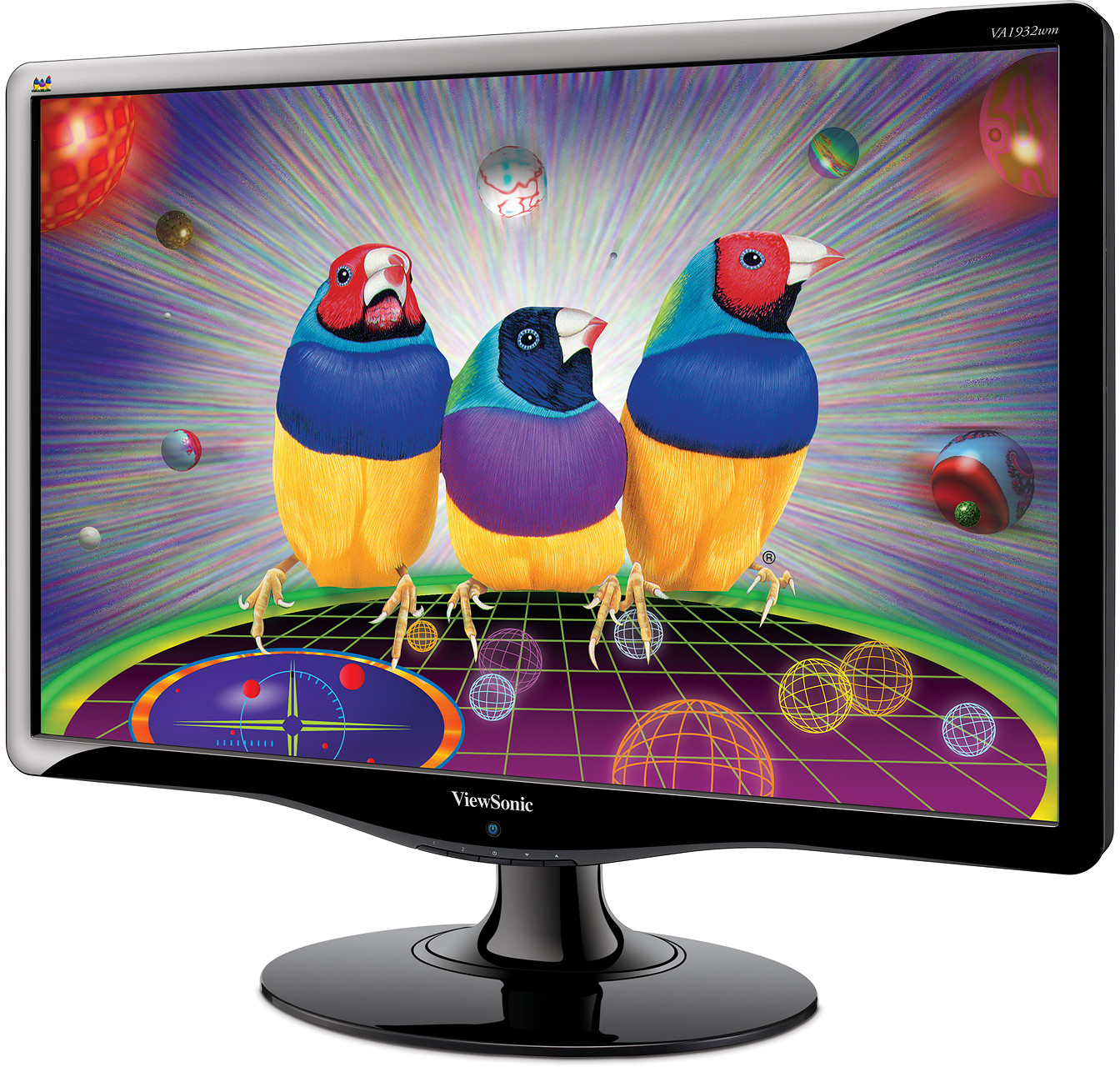

ViewSonic VA1932w 48cm/19" VALUE SERIES WIDESCREEN LCD DISPLAY

LCD

Kontrastní poměr:	1,000:1(Typical)
Zobrazovací úhly:	170° (V), 160° (V)
Optimum Resolution:	1440 × 900
Doba odezvy:	5 ms
Světelný zdroj:	50,000 Minimum
Panel Surface:	Anti-Glare, Hard coating(3H)
Pixel Pitch:	0.2835 × 0.2835 (mm)
Colour Support:	16.7 M
Size:	48cm/19" Wide Color a-Si TFT Active Matrix LCD 16:10 aspect ratio
Jas:	300 (Typical)
Poměr dynamického kontrastu:	100,000:1

COMPATIBILITY

PC: VGA up to 1440 × 900 Non Interlaced

Mac®: Mac OS up to 1440 × 900
DIMENSIONS

Physical With Stand: 445.2 x 376.0 x 189.4 (mm) / 17.5 x 14.8 x 7.5 (in)
INPUT

Sync: Separate, composite

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–82kHz / 50–75Hz
CONNECTOR

Analogue: 1 x 15 pin mini D-sub

Digital: DVI-D x 1

Výkon: Internal Power Board, 3-pin plug x1
POWER

Napětí: AC 100-240V (Universal); 50/60 Hz

Spotřeba: 35 W Typical, 40 W Maximum

Save Mode (W): <= 0.5W

CONTROLS

Basic:	[1], [ 2 ], [PW], [Dn], [Up] Auto Image Adjust, Contrast
On View (PC mode):	Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B] Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language Select, Resolution Notice, OSD Position, OSD Time out, OSD Background, Auto Power Off, Memory Recall

VESA® MOUNT

100mm × 100mm
ERGONOMICS

Naklápění: 20~-5 degrees
WEIGHT

Čistá hmotnost: 3.42 kg / 7.54 l
OPERATING CONDITIONS

Vlhkost: 20 - 90 (%)(non-condensing)

Teplota: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1440 × 900 Non Interlaced
Mac®:	Mac OS up to 1440 × 900

Analogue:	1 x 15 pin mini D-sub
Digital:	DVI-D x 1
Výkon:	Internal Power Board, 3-pin plug x1

Vlhkost:	20 - 90 (%)(non-condensing)
Teplota:	0 - 40 (°C) / 32 - 104 (°F)
