Klíčové Vlastnosti

Produkt Popis

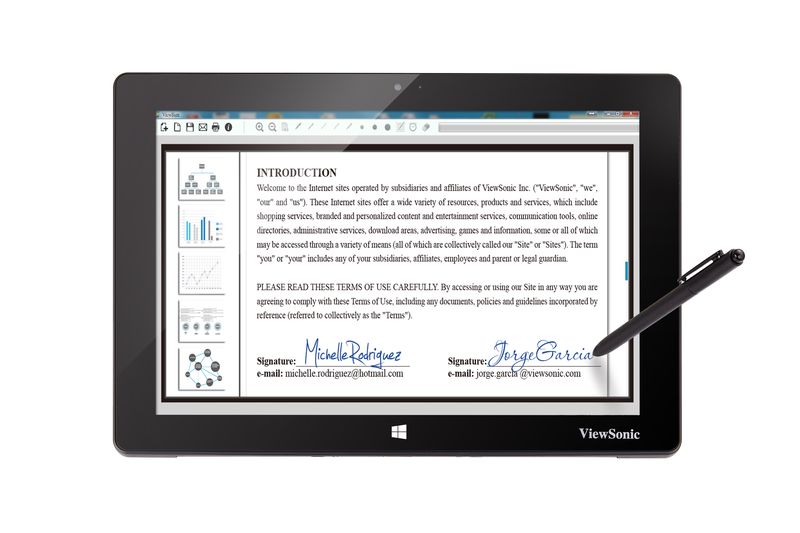

PT1080 is a 10” (10.1” viewable) high-performance pen tablet, built-in with Windows OS, offering 10-point touch and electromagnetic resonance pen (EMP) touch technology. No matter directly touch by 10 fingers or casually writing by the advance battery-free V pen on 1280 x 800 high-definition resolution tablet, the PT1080 offering intuitive writing, drawing, and signing experience while just like real writing on paper which increases the accuracy and reliability of digital signature. The portable pen tablet carries with 1024-level pen pressure sensitivity, 200 point per second (PPS) tracking speed and 5080 line per inch (LPI) touch resolution, which assures the identity of authentic signature, that is ideal for the industries who deal with confidential contracts or a large amount of paperwork on a daily basis, such as banking and insurance, financial business, telecommunication or other retailing business to adopt digitalized and paperless management. Featuring with powerful Intel Baytrail-T (Quad-core) 1.33 GHz CPU, 2GB DDR3L memory, 32GB EMMC storage, and pairing with one sleeve type keyboard, PT1080 serves as the mobile solution for users to conduct paper-free working process without locational limitation. It also integrates versatile connectivity of USB, Micro USB, Mini HDMI and Micro SD for document saving, data transmitting and other applicable purpose. Compatible with Windows as well as support e-signature software, which is easy to install and suitable for presentation at the counter. 8H glass treatment and SuperClear® IPS panel technology, even the delicate stroke or calligraphy could be reproduced on the solid and scratch-resist surface of pen display, delivering a durable and reliable e-writing experience.
Navštivte nás
    Display Area: 10.1''
    Optimum Resolution: 1280 x 800
    Jas: 300cd/m2 (Typ),250cd/m2 (Min)
    Kontrastní poměr: 500(TYP) 400(Min)
    Zobrazovací úhly: 160 Deg H and 160 Deg V (Typ.)
    Backlight: LED Light-Bar
    Procesor: Intel Baytrail-T(Quad-core ), Z3735F, 1.33Ghz
    Paměť: 2GB DDR3L
    Úložný prostor: 32GB eMMC
    Operační systém: Windows 8.1
    Video: Mini HDMI 1.4a x 1
    Audio: 3.5mm standard headphone jack x 1
    USB: USB 2.0 x 2, Micro USB x 1(Ethernet Network)
    SD karta: Micro SD slot x 1
    Výkon: Input; AC/100V-240V ~ 50/60HZ Output: DC/ 5V/3A Max
    Battery: V Pen: Battery-less
    Teplota: 32°F to 113°F (0°C to 45°C)
    Vlhkost: 20% - 80%(Max), Non-Condensation
    Physical (in / mm): 258.13 x 172.71 x 10.62 mm
    Box (in / mm): 294 x 200 x 71 mm
    Čistá hmotnost (lb / kg): lb / 0.7 kg
    Hrubá hmotnost (lb / kg): lb / 10.5 kg
    Pen Display*1 / Quick Star Guide *1 / Driver CD*1 / USB 2.0 Y-cable*1 / Adapter*1 / Replacement tool of Pen tip*1 Pen*1 / Pen tip*3 / Warranty card*1(VSCN only)*1 / Pen rope*1 / User Guide *1 (e-file) * Actual content may differ from market to market
