Klíčové Vlastnosti
  • SuperColor™ technology
  • Dual HDMI inputs and USB power supply
  • LAN control support- Crestron, AMX, PJ Link and Extron
  • Auto power on
  • Smart Energy

Produkt Popis

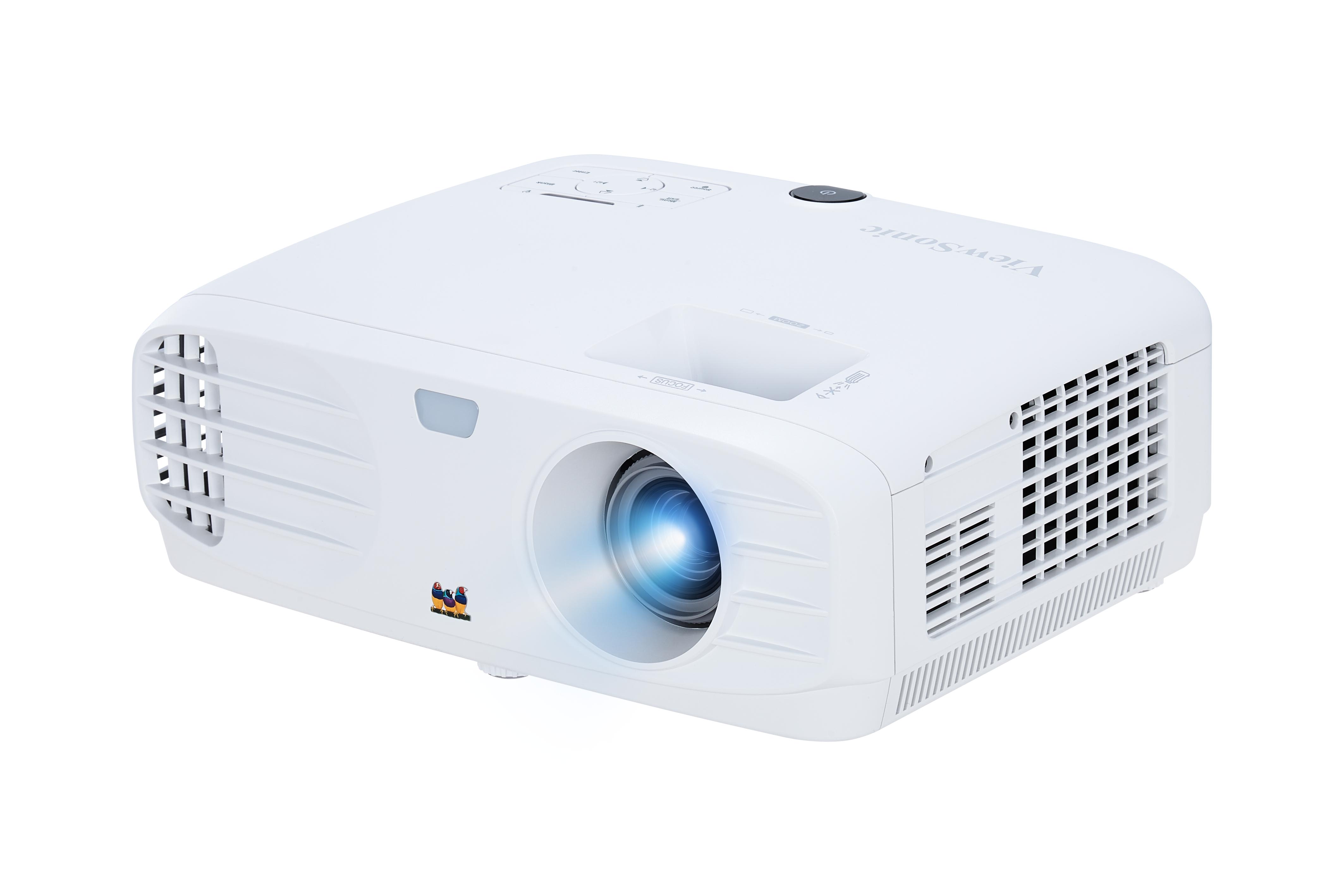

The ViewSonic PG705HD is a high brightness projector that combines 4000 ANSI lumens and 1080p resolution to project images full of depth and detail, even in brightly lit spaces. With the projector’s energy-saving SuperEco mode, PG705HD is able to reduce power consumption and extend the projector’s lamp life to up to 15,000 hours. A longer lamp life also lowers lamp replacement and maintenance costs, which is particularly useful for corporations and schools with frequent projector usage. Dual HDMI inputs allow user to quickly connect an array of devices, while the integrated USB power supply can be used to power connected devices. In addition, PG705HD’s integrated Crestron, AMX, PJ Link, and Extron compatible RS232 and LAN network solutions allow users to easily control and monitor projectors remotely for maximum efficiency.
  1. Power key & Top IR
  2. Keypad
  3. LED indicator
  4. Front IR
  5. Zoom/Focus
  6. Projection Lens
  7. HDMI x2
  8. USB type A (5V/1.5A)
  9. Mini USB for service
  10. Computer in
  11. Monitor out
  12. LAN
  13. S-Video
  14. Video
  15. Audio in/out
  16. AC in
  17. RS232
  18. Kensington lock
Navštivte nás
    Nativní rozlišení: 1920x1080
    DC type: DC3
    Jas: 4000 ANSI Lumens
    Contrast Ratio with SuperEco mode: 12000:1
    Display Color: 1.07 Billion Colors
    Světelný zdroj: Lamp
    Light source life (Nor/SuperEco): 4000/15000
    Lampa Watt: 240W
    Objektiv: F=1.94-2.06, f=15.57-18.67mm
    Posun projekce: 110%+/-6%
    Projekční poměr: 1.47-1.76
    Image size: 30" - 300"
    Projekční vzdálenost: 0.97m-11.69m(100" @3.26m)
    Keystone: ±40° (Vertical)
    Optický zoom: 1.2x
    Audible Noise (Eco): 27dB
    Podpora rozlišení: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    Kompatibilita s HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Kompatibilita s video soubory: NTSC, PAL, SECAM
    Horizontální frekvence: 15K~102KHz
    Vertikální rychlost snímání: 23~120Hz
    Computer in (D-SUB 15 pin): 1
    Kompozitní: 1
    S-video: 1
    Audio vstup (3,5 mm): 1
    HDMI (HDCP): 2 (Back)
    (HDMI 1.4/ HDCP 1.4)
  • VýSTUP
    Monitor out (D-SUB 15 pin): 1
    Audio výstup (3,5 mm): 1
    Reproduktor: 10W
    USB type A (Power): 1 (5V/1.5A)
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
  • DALší
    Napětí zdroje napájení: 100-240V+/- 10%, 50/60Hz AC
    Spotřeba energie: Normal: 310W
    Standby: <0.5W
    Provozní teplota: 0~40℃
    Carton: Brown
    Čistá hmotnost: 3.68kg
    Dimensions (WxDxH) w/adjustment foot: 332x261x135mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
    Napájecí kabel: 1
    VGA cable: 1
    Dálkové ovládání: 1
    QSG & CD: QSG: 1 / CD: NA
    Lampy/zdroje světla: RLC-117
    Warranty Card: Yes (CN Only)
