Klíčové Vlastnosti

Produkt Popis

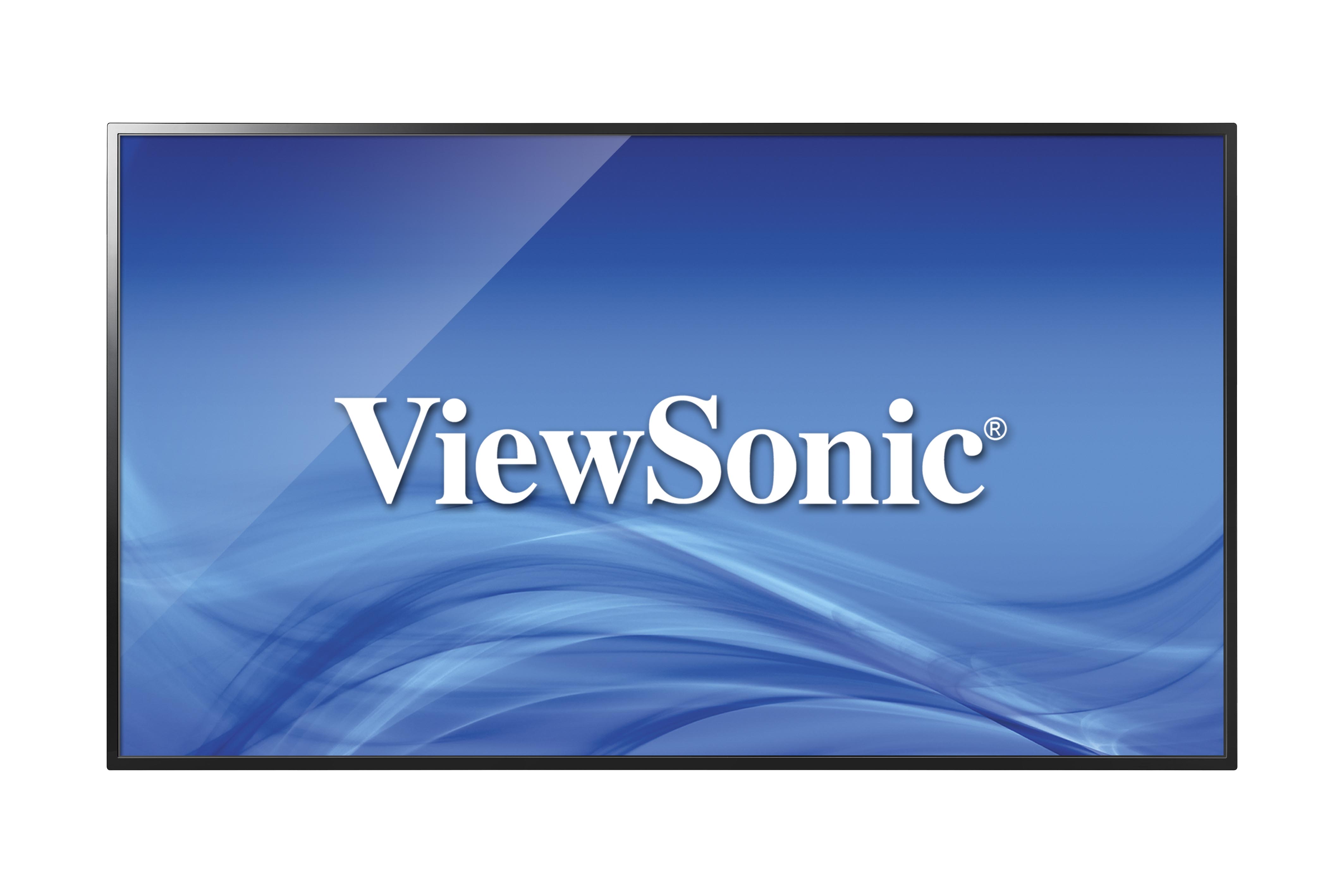

The ViewSonic CDE5502 is a 55’’ (54.6” viewable) Full HD commercial display, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. Integrated with an embedded media player, the CDE5502 is able to easily playback high definition messaging via USB port. Versatile connectivity options also include 2 HDMI ports, VGA, RS232 and SPDIF. With Full HD resolution, 350-nit brightness, and wide viewing angles, the slim-bezel CDE5502 delivers sharp and vivid images to ensure crisp pictures and smooth content playback. HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
Navštivte nás
    Velikost panelu: 55" (54.64")
    Typ/Tech: TFT LCD Module. (IPS, DLED backlight)
    Plocha displeje (mm): 1209.6(H) x 680.4 (V) (54.64” diagonal)
    Poměr stran: 16:9
    Rozlišení: 1920x1080
    Colors: 16.7M colors
    Jas: 350 nits (typ.)
    Kontrastní poměr: 1200:1 (typ.)
    Doba odezvy: 9 ms
    Zobrazovací úhly: H = 178, V = 178 (typ.)
    Backlight: DLED
    Životnost podsvícení: 30,000 Hours (typ.)
    Povrchová úprava: Anti-Glare, 3H, Haze 2% (typ)
    HDMI: x2 (1.4)
    RGB / VGA: x1
    Audio: x1 (3.5mm jack)
    RS232: x1
    Audio: x1 (Earphone out) (3.5mm jack)
    SPDIF: x1
  • USB
    Typ A: x1 (2.0)
    10W x2
    RGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
    HDMI: 480i, 480p,720p,1080i,1080p
    Physical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
    PICTURE: Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting
    SOUND: Auto sound, Equalizer, Balance, Reset sound settings
    CLOCK: Sleep timer, Date/Time.
    FEATURES: Language, PC settings, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features
    USB MENU: Photo, Music, Movie
    Napětí: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Spotřeba: "On" 105W
    "Off" (Suspend) < 0.5 W
    Wall Mount (VESA® ): 200x400mm / 400x400mm ; Screw: M6*10mm
    Temperature (º C): 0°C to 40°C (Landscape)
    Vlhkost: 20% ~ 80% non-condensing
    (W X H X D)
    Fyzicky (palce / mm): 1238.6 x 711.1 x 59.9 mm / 48.76 x 28.0 x 2.36 in.
    Balení (palce / mm): 1365 x864 x185 mm / 53.74 x 34.02 x 7.28 in.
    Čistá hmotnost (lb / kg): 16.0 kg / 35.27 lbs
    Hrubá hmotnost (lb / kg): 23.0 kg / 50.71 lbs
    **Warranty offered may differ from market to market
    1. CDE5502 commercial display
    2. Remote Control with batteries
    3. User manual CD wizard
    4. Quick Start Guide
    5. Power Cables
    6. VGA cable
    7. RS232

    *Actual content may differ from market to market
