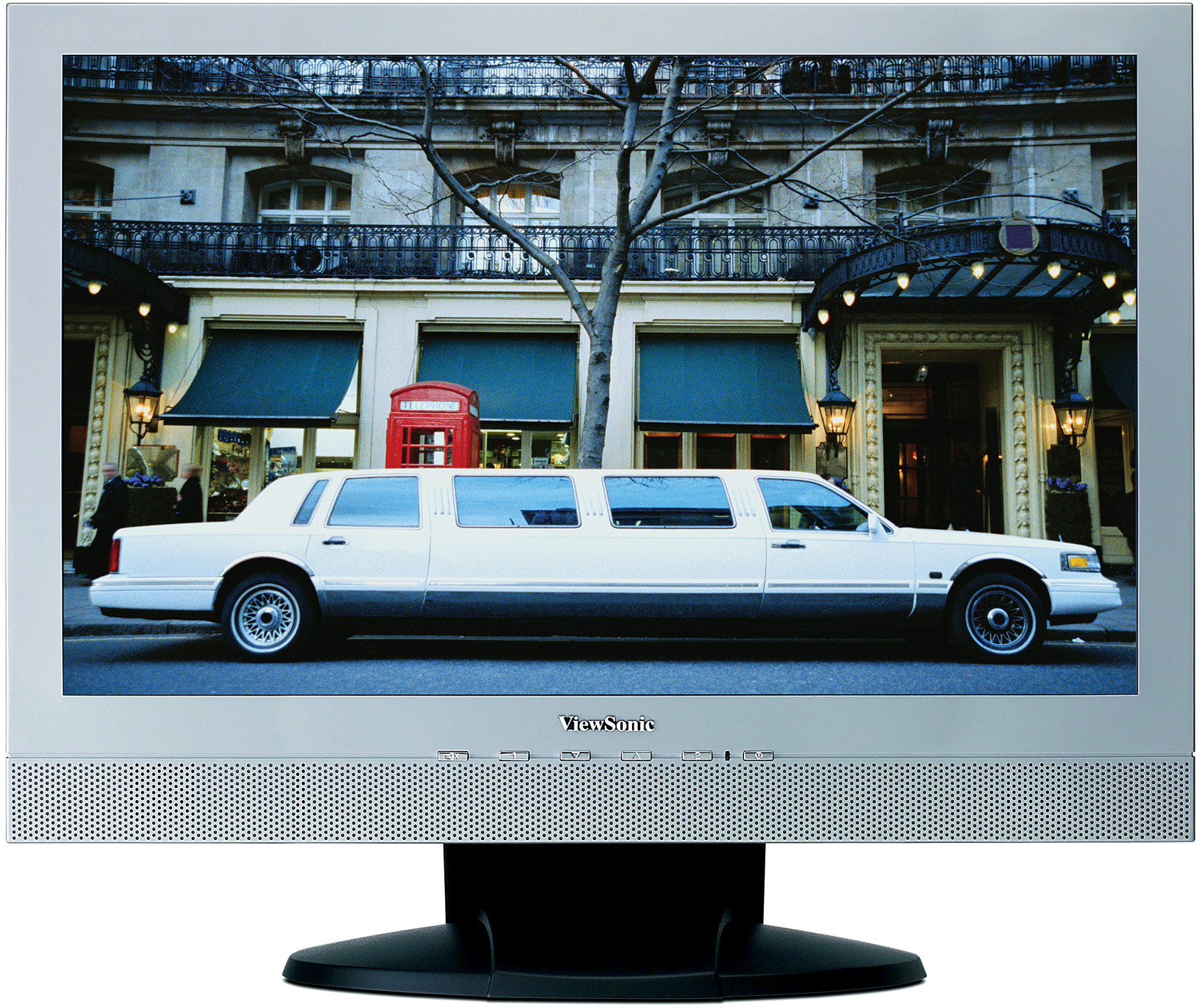

ViewSonic VA2012w 51 cm / 20" WIDE-SCREEN LCD WITH 8MS CLEARMOTIV™

LCD

Type:	51 cm / 20.1" TN colour TFT active matrix WSXGA+ LCD
Contrastverhouding:	600:1 (typ.)
Kijkhoeken:	140° horizontal, 125º vertical (at 10:1) 160° horizontal, 145º vertical (at 5:1)
Helderheid:	300 cd/m² (typ.)
Display Area:	43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal
Optimum Resolution:	1680 x 1050
Reactietijd:	8ms (off-on-off) (typ.)
Lichtbron:	Long life, 40000 hrs. (min. typ.)
Aspectratio:	16:10
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.258mm
Bandwidth:	205MHz analogue
Colour Support:	16.7M colours (8-bit)

COMPATIBILITY

PC: VGA up to 1680 x 1050 non-interlaced (max. 60Hz)

Mac®: Power Mac™ up to 1680 x 1050 (max. 60Hz)
DIMENSIONS

Physical With Stand: 479 x 423 x 216 (w/ stand)

Physical Without Stand: 479 x 351 x 63 (w/o stand)
VERPAKKINGSINHOUD

LCD display, power cable, 15-pin VGA cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD (User Guide/drivers)
AUDIO

Speaker: Integrated stereo speakers
CONNECTOR

Analogue: 15-pin mini D-sub (detachable cable)

Stroom: 3-pin AC plug (CEE22)

Audio In: 3.5mm stereo audio line-in
POWER

Spanning: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consumptie: 47 watt (typ.), <2 watt in power save mode

CONTROLS

Basic:	Power, menu [1], down, up, select [2], mute, volume up/down, main power
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H. size, H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatuur: 0°C – 40°C

Luchtvochtigheid: 10% – 90% (non-condensing)
WEIGHT

Net With Stand: 5.5kg (w/ stand)

Net Without Stand: 4.9kg (w/o stand)
VIDEO INPUT

Frequency: Fh: 30 - 94kHz, Fv: 50 - 75Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohms)
POWER MANAGEMENT

Meets TCO’99 and Energy Star® standards
ERGONOMICS

Down 5°, up 20°

PC:	VGA up to 1680 x 1050 non-interlaced (max. 60Hz)
Mac®:	Power Mac™ up to 1680 x 1050 (max. 60Hz)

Physical With Stand:	479 x 423 x 216 (w/ stand)
Physical Without Stand:	479 x 351 x 63 (w/o stand)

Analogue:	15-pin mini D-sub (detachable cable)
Stroom:	3-pin AC plug (CEE22)
Audio In:	3.5mm stereo audio line-in

Spanning:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumptie:	47 watt (typ.), <2 watt in power save mode

Temperatuur:	0°C – 40°C
Luchtvochtigheid:	10% – 90% (non-condensing)

Net With Stand:	5.5kg (w/ stand)
Net Without Stand:	4.9kg (w/o stand)
