Toets Features
  • WUXGA 1920x1200 Resolution
  • 4000 ANSI lumens
  • SuperColor™ Technology
  • Dual HDMI
  • Up to 20,000 lamp hour (SuperEco+ mode)

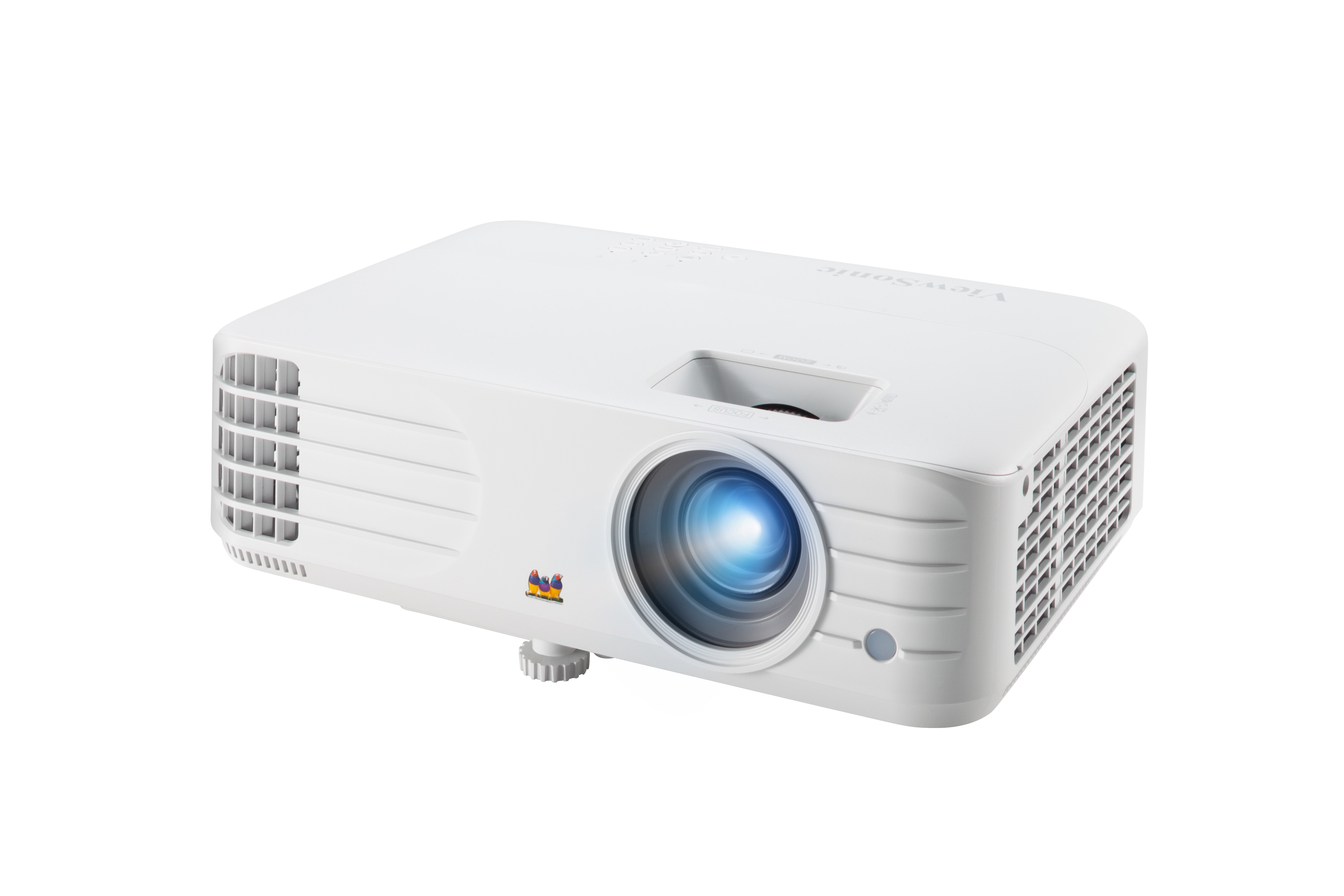

PG706WU
Product Omschrijving
The ViewSonic PG706WU features 4000 ANSI lumens of brightness to project the finest of details in any ambient setting. High brightness and a WUXGA 1920 x 1200 widescreen resolution provide you with perfect projection in any medium sized space, such as a meeting room or classroom. The PG706WU comes with an energy-saving SuperEco+ mode that reduces power consumption and extends lamp life to 20,000 hours, reducing the frequency of lamp replacement and lowering maintenance costs. In addition to dual HDMI, Video, S-Video, and VGA, the projector is integrated with RS232 and LAN, certified by Crestron, AMX, PJ Link and Extron networkable solutions, making it easy to control and monitor the projector remotely.

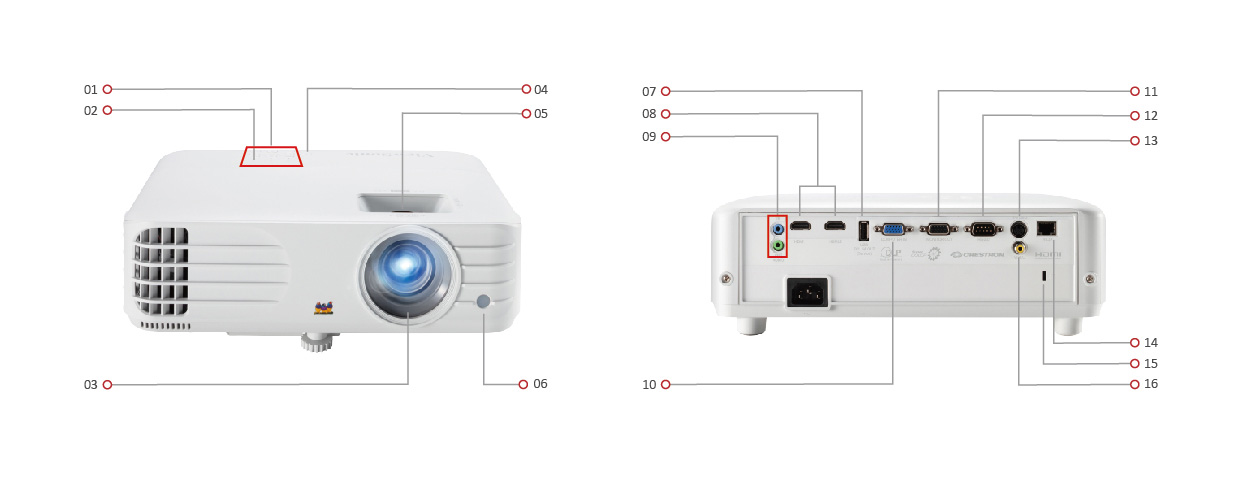

  1. Keypad
  2. LED Indicator
  3. Lens
  4. Power Keypad
  5. Zoon/Focus
  6. Front IR
  7. USB Type A
  8. HDMI Port
  9. Audio In / Out
  10. Computer In
  11. Computer Out
  12. RS-232
  13. S-Video
  14. RJ45
  15. Kensington Lock
  16. Video
Bezoek Gebruikers
  • www.viewsonic.com
  • SPECIFICATIE
    Projectiesysteem: 0.48” WUXGA
    Native resolutie: 1920x1200
    DMD-type: DC3
    Helderheid: 4000 ANSI Lumens
    Contrastverhouding met SuperEco-modus: 12000:1
    Weergavekleur: 1.07 Billion Colours
    Type lichtbron: Lamp
    Levensduur lichtbron (normaal): 4000
    Levensduur lichtbron (SuperEco): 20000
    Lamp Watt: 245W
    Lens: F=2.0~2.05, f=15.843-17.445mm
    Projectie offset: 100%+/-6%
    Throw Ratio: 1.5-1.65
    Optische zoom: 1.1x
    Digitale zoom: 0.8x-2.0x
    Afbeeldingsformaat: 30"-300"
    Throw Distance: 0.97m-10.66m
    (100"@3.23m)
    Keystone: +/- 40° (V)
    Hoorbaar geluid (normaal): 32dB
    Audible Noise (Eco): 27dB
    Ingangsvertraging: 16ms
    Resolutie Ondersteuning: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibiliteit: NTSC, PAL, SECAM
    Horizontale frequentie: 15K-102KHz
    Verticale scansnelheid: 23-120Hz
  • INVOER
    Computer in (delen met component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    RJ45-ingang: 1
    (LAN control)
  • UITGANG
    Monitor uit: 1
    Audio-uitgang (3,5 mm): 1
    Speaker: 10W
    USB Type A (voeding): 1 (5V/ 1.5A)
  • CONTROLE
    RS232 (DB 9-pin male): 1
    RJ45: 1
  • ANDEREN
    Voedingsspanning: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Energieverbruik: Normal: 355W
    Standby: <0.5W
    Bedrijfstemperatuur:: 0~40℃
    Netto gewicht: 2.79kg
    Afmetingen (BxDxH) met stelvoet: 312x222x108mm
    OSD Taal: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek Total 23 languages
  • STANDARD ACCESSORY
    Stroomdraad: 1
    VGA-kabel: 1
    Afstandsbediening: 1
    (w/ laser pointer)
    QSG: 1
  • OPTIONELE ACCESSOIRE
    Lamp/Lichtbron: RLC-120
