Toets Features
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • 64-point touch with palm rejection and Write Away offer precise, instant annotation.
  • Integrated ViewSonic Education Software empowers seamless classroom experiences.
  • Built-in 2.1-channel speakers with subwoofer and 8-microphone array deliver rich audio.
  • Light and motion sensors optimize brightness, improving energy efficiency and panel lifespan.

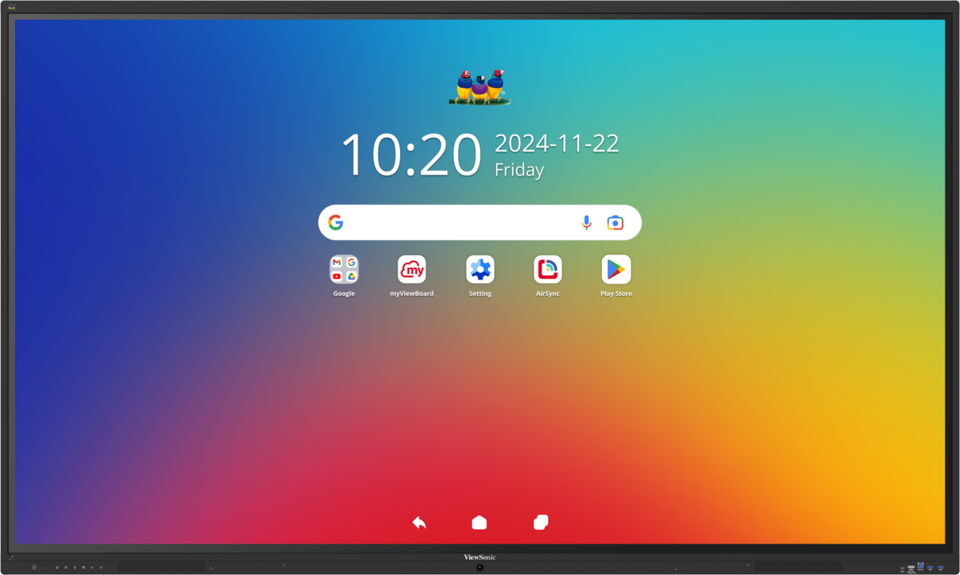

ViewBoard IFP8641-1-1C
Product Omschrijving
Bring powerful performance and effortless interactivity to any classroom with the ViewBoard® IFP41-1 Series, available in 55", 65", 75", 86", and 98" models. Built-in ambient light and PIR motion sensors allow for automatic screen brightness adjustment to support sustainability, while 64-point touch technology and instant annotation with Write Away offer smooth, responsive collaboration. Dual USB-C ports provide seamless connectivity with up to 100W power delivery, enabling convenient single-cable charging and data transfer. As an EDLA-certified interactive display with Android 16, it ensures regular security updates and reliable access to the latest Google Play Store apps. Integration with ViewSonic Education Software enhances functionality with whiteboarding, wireless casting, and device management solutions, creating a smart, secure, and connected teaching experience.

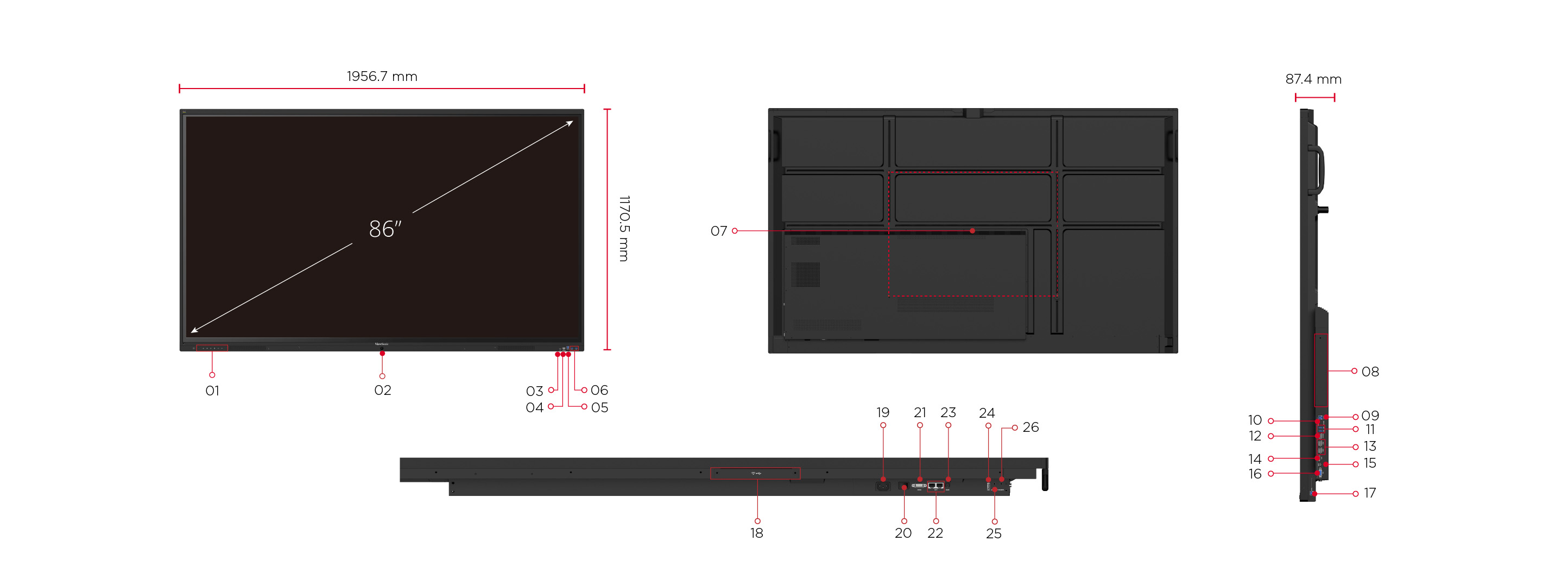

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI
  5. Touch 3
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 800 x 400 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Touch 2
  18. WiFi Slot
  19. AC In
  20. Power Switch
  21. RS232
  22. LAN x 2
  23. SPDIF
  24. USB 2.0
  25. Audio Out
  26. Audio In
Bezoek Gebruikers
  • www.viewsonic.com
  • DISPLAY
    Paneelgrootte: 86"
    Paneeltype: TFT LCD Module with DLED Backlight
    Weergavegebied (mm): 1895.04mm(H) x 1065.96mm (V)(85.6" diagonal)
    Aspectratio: 16:9
    Resolutie: UHD 3840x2160
    Colors: 1.07B colors
    Helderheid: 450 nits
    Contrastverhouding: 5000:1 (max. with DCR enabled)
    Reactietijd: 6.5ms
    Kijkhoeken: H = 178°, V = 178° typ.
    Levensduur achtergrondverlichting: 50,000 hours
    Oppervlakte behandeling: Hardness:9H, Anti-glare coating
    Oriëntatie: Landscape
  • PLATFORM
    Processor: Octa-Core CPU
    RAM: 8GB
    Opslag: 128GB
  • TOUCH
    Type: Ultra Fine Touch Techology (IR Recognition)
    Touch resolutie: 32767×32767
    Touch punt: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1:HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI 2.1 4K@60Hz with CEC, ARC)x1+(HDMI 2.1 4K@60Hz with CEC)x1]
    RGB/VGA: x1
    DisplayPort: x1
    Audio: x1
    RS232: x1
    SD/SDHC: TF Card Slot(Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Audio: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    Type A: x5 (Front x 2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
    Type B: ×3 (Front ×1, Rear ×2 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2/3 with 2.0 data)
    Type C: x2 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • SPEAKERS
    20W x 2 Front soundbar + 15W x 1 subwoofer
  • MICROPHONE
    Built-in 8-array microphone
  • INGESLOTEN BESTURINGSSYSTEEM
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Basis annotatiesoftware: myViewBoard for Android
    Pro annotatiesoftware: myViewBoard for Windows (embedded in VPC)
    Draadloze presentatie: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • SPECIALE EIGENSCHAPPEN
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    Eenvoudig delen via LAN tussen IFP en slot-in-apparaat: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • STROOM
    Spanning: 100-240V AC +/- 10% Wide Range
    Consumptie: On:93.99 W ; Off:< 0.5 W
  • ERGONOMICS
    Wandmontage (VESA®): 800x600
  • OPERATING CONDITIONS
    Temperatuur (º C): 0°C to 40°C
    Luchtvochtigheid: 20% ~ 80% RH non-condensing
  • AFMETINGEN (B X H X D)
    Fysiek (inch/mm): 77.04 x 46.08 x 3.44 in / 1956.7 x 1170.5 x 87.4mm
    Verpakking (inch / mm): 82.68 x 50.91 x 6.93 in / 2100 x 1293 x 176 mm
  • WEIGHT
    Netto (lb / kg): 128.31 lb / 58.2 kg
    Bruto ( lb/kg): 160.72 lb / 72.9 kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • ENERGY STAR VERSIE
    8.0
  • EEI RATING
    D
  • VERPAKKINGSINHOUD
    1. Power Cord x1 3 meters,

    by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Type-C cable x1 1.8 meters , USB-IF certified

    3. USB Touch cable x1 3 meters

    4. Touch pen (Passive pen) x 2

    5. Quick Start Guide (With Compliance statement )

    6. Screw x 4 ( wall mount 4)

    7. HDMI cable x1 3meters,

     (HDMI LA certified)

    8. Remote controller x1

    9. AAA battery x2
  • COMPATIBLE SLOT-IN PC
    VPCF5-S55-G1-2A /VPCF5-W55-G1-2A / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
