Toets Features
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • Built-in ViewSonic Education Software supports dynamic learning and enriched classroom experiences.​
  • 64-point advanced touch recognition and palm rejection enhances interactivity and collaboration.​
  • USB-C with 65W power delivery simplifies display, audio, touch, and network connectivity.​
  • Light and motion sensors automatically adjust brightness for better energy efficiency and panel lifespan. ​

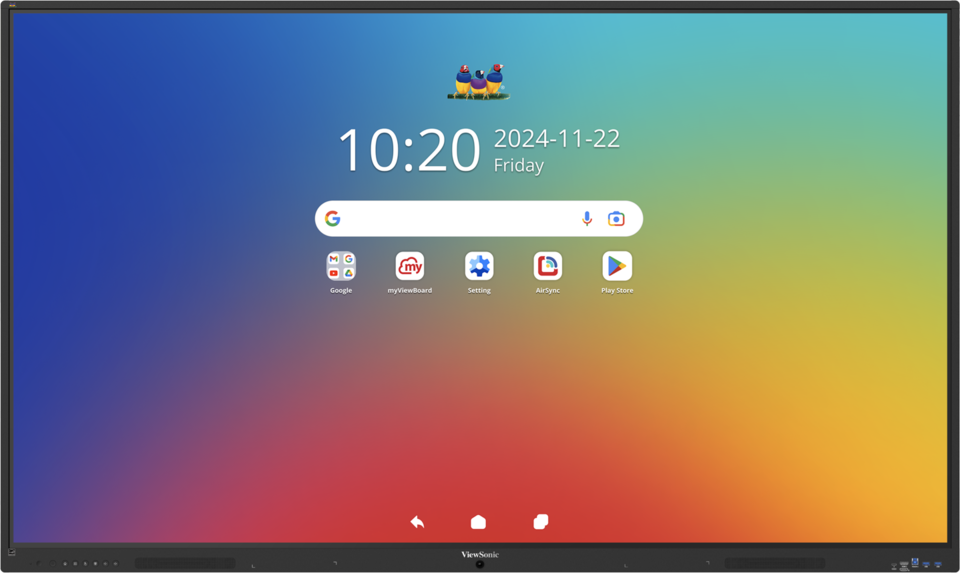

ViewBoard IFP7535-1-1C
Product Omschrijving
Experience fast, smooth, and reliable performance in every class with the ViewBoard® IFP35-1 Series. Available in 65", 75", and 86" models, it’s powered by an octa-core CPU with 128GB storage. EDLA-certified Android 16 ensures secure access to Google Play apps and a responsive system for effective teaching. Integrated ViewSonic Education Software includes tools for whiteboarding, wireless casting, and device management, helping teachers create interactive and engaging lessons while streamlining IT workflows. Built-in ambient light and motion sensors complete the experience, optimizing brightness, conserving energy, and extending panel life for smarter, more efficient classrooms.​​

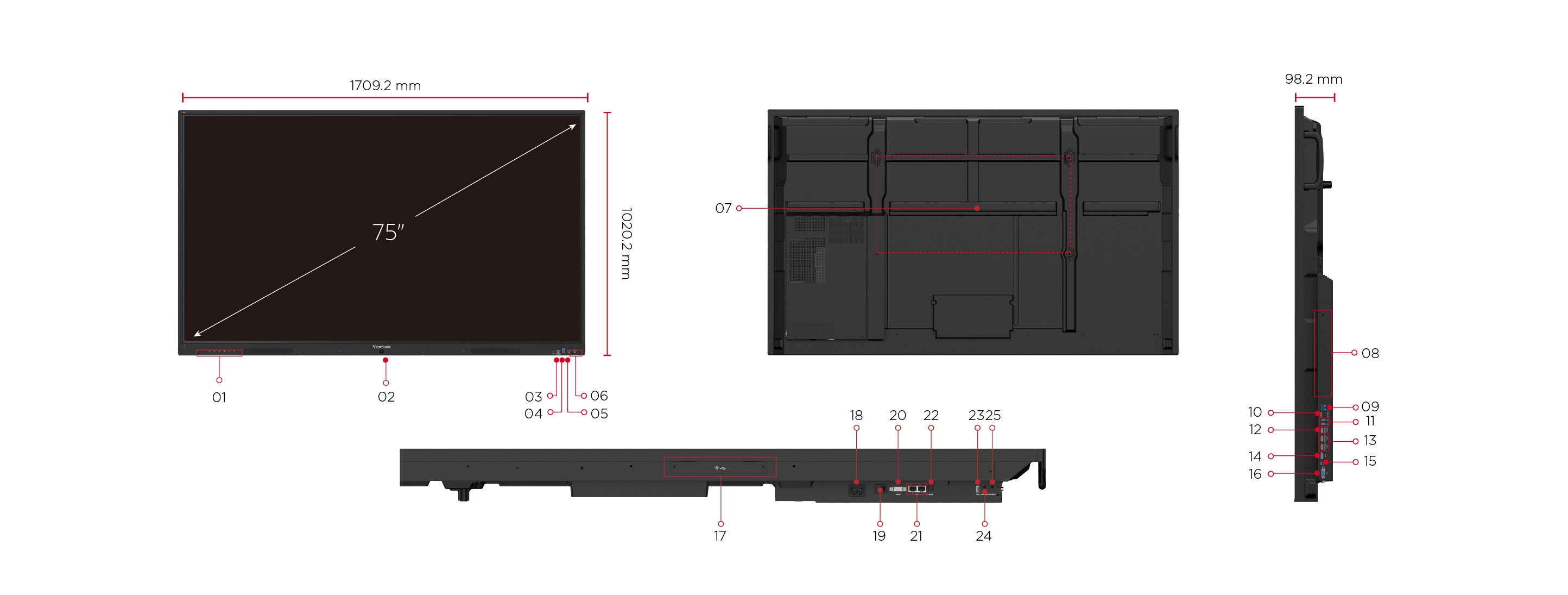

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI 3
  5. Touch 2
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 800 x 400 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Wi-Fi Slot
  18. AC In
  19. Power Switch
  20. RS232
  21. LAN x 2
  22. SPDIF
  23. USB
  24. Audio Out
  25. Audio In
Bezoek Gebruikers
  • www.viewsonic.com
  • DISPLAY
    Paneelgrootte: 75“
    Paneeltype: TFT LCD Module with DLED Backlight
    Weergavegebied (mm): 1650.24mm(H) x 928.26mm(V)(74.6" diagonal)
    Aspectratio: 16:9
    Resolutie: UHD 3840 x 2160
    Colors: 1.07B colors (8bit+FRC)
    Helderheid: 450 nits
    Contrastverhouding: 5000:1 (max. with DCR enabled)
    Reactietijd: 6.5ms
    Kijkhoeken: H = 178°, V = 178° typ.
    Levensduur achtergrondverlichting: 50,000 Hours
    Oppervlakte behandeling: Hardness: 9H, Anti-glare coating
    Oriëntatie: Landscape
  • PLATFORM
    Processor: Octa-Core CPU
    RAM: 8GB
    Opslag: 128GB
  • TOUCH
    Type: Ultra Fine Touch Technology (IR Recognition)
    Touch resolutie: 32767 x 32767
    Touch punt: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1: HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI2.1 4K@60Hz with CEC, ARC)x1+(HDMI2.1 4K@60Hz with CEC)x1]
    RGB/VGA: x1
    DisplayPort: x1
    Audio: x1
    RS232: x1
    SD/SDHC: x1 TF Card Slot (Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Audio: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    Type A: x5 (Front x2 and Rear x2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x1 with USB 2.0 for system update)
    Type B: x2 (Front x1 and Rear x1 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2 with 2.0 data)
    Type C: x2 (Frontx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • SPEAKERS
    20W x 2 Front soundbar
  • INGESLOTEN BESTURINGSSYSTEEM
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Basis annotatiesoftware: myViewBoard for Android
    Pro annotatiesoftware: myViewBoard for Windows (embedded in VPC)
    Draadloze presentatie: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • SPECIALE EIGENSCHAPPEN
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    Eenvoudig delen via LAN tussen IFP en slot-in-apparaat: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • STROOM
    Spanning: 100-240VAC +/- 10% Wide Range
    Consumptie: On: 92.44 W ; Ｏff:< 0.5 W
  • ERGONOMICS
    Wandmontage (VESA®): 800 mm x 400 mm
  • OPERATING CONDITIONS
    Temperatuur (º C): 0°C to 40°C
    Luchtvochtigheid: 20% ~ 80% RH Non-Condensing
  • AFMETINGEN (B X H X D)
    Fysiek (inch/mm): 67.28 x 40.16 x 3.87 in / 1709 x 1020 x 98.2 mm
    Verpakking (inch / mm): 72.95 x 44.88 x 6.93 in / 1853 x 1144 x 176 mm
  • WEIGHT
    Netto (lb / kg): 85.76 lb / 38.9 kg
    Bruto ( lb/kg): 101.20 lb / 45.9 kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • ENERGY STAR VERSIE
    8.0
  • EEI RATING
    D
  • VERPAKKINGSINHOUD
    1. Power Cord x1 3 meters,

    by shipping area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Touch cable x1 3 meters

    3. Touch pen (Passive pen) x2

    4. Quick Start Guide (With Compliance statement )

    5. Screw x4 (for wall mount)

    6. HDMI cable x1 3 meters,

    (HDMI LA certified)

    7. Remote controller x1

    8. AAA battery x2

    9. Warranty card (only for VSCN)
  • COMPATIBLE SLOT-IN PC
    VPCF5-S55-G1-2A /VPCF5-W55-G1-2A / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
