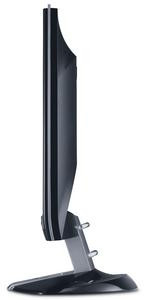

ViewSonic VX1935wm 19" WIDE SCREEN LCD WITH CLEARMOTIV™ 5MS BROADCAST QUALITY VIDEO

LCD

Type:	19” Wide TN colour TFT active matrix WXGA LCD
Rapport de contraste:	700:1 (typ.)
Angles de vue:	130° horizontal, 120° vertical (at 10:1) 150° horizontal, 140° vertical (at 5:1)
Luminosité:	300cd/m²
Zone d'affichage:	41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
Résolution optimale:	1440 x 900@60Hz
Temps de réponse:	5ms (off-on-off) (typ.)
Source lumière:	Long life, 40000 hrs. (min.)
Surface panneau:	Anti-glare (3H)
Pas de pixel:	0.285mm
Prise en charge des couleurs:	16.2M colours (6-bit+2-bit FRC)v
Horloge pixel:	136.5MHz

COMPATIBILITÉ

Ordinateur: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ up to 1440 x 900 non-interlaced
DIMENSIONS (MM)

Larg x prof x htr mm: 450 x 434 x 210 (with stand)
450 x 341 x 76 (without stand)
545 x 515 x 162 (packaging)
CONTENU DE L'EMBALLAGE

LCD Monitor, power cable, D-sub video cable, DVI cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
GARANTIE

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Haut-parleurs: 2 x 1.5 watt integrated speakers
ENTRéE

Synchronisation: H/V separate (TTL), composite, sync on green

Numérique: DVI-D (TMDS, 100 ohms)

Analogique: RGB analogue (0.7 Vp-p, 75 ohm)

Fréquence: DVI-D (TMDS, 100 ohms)
CONNECTEURS

Analogique: 15-pin mini D-Sub (detachable cable)

Numérique: 24-pin DVI-D (detachable cable)

Audio: 3.5mm stereo audio line-in

Alimentation: 3-pin AC plug (CEE22)
ALIMENTATION

Tension: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consommation: 35 watt (typ.), <1 watt in power save mode

COMMANDES

De base:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio
(volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number,
serial number, website), manual image adjust (H/V position, H size, fine tune,
sharpness), setup menu (language, resolution notice, OSD position, OSD timeout,
OSD background), OSD/power lock, memory recall

POIDS

Net: 5.6kg (with stand)
4.7kg (without stand)

Brut: 5.6kg (with stand)
4.7kg (without stand)
GESTION ALIMENTATION

Meets MPR II and Energy Star® standards
SÉCURITÉ

Kensington® security port
MONTAGE MURAL

VESA FDMI 100mm x 100mm
ERGONOMIE

Inclinaison: 35 watt (typ.), <1 watt in power save mode
CONDITIONS D'EXPLOITATION

Humidité: 20%–85% (non-condensation)

Température: 0°C–40°C

Ordinateur:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ up to 1440 x 900 non-interlaced

Synchronisation:	H/V separate (TTL), composite, sync on green
Numérique:	DVI-D (TMDS, 100 ohms)
Analogique:	RGB analogue (0.7 Vp-p, 75 ohm)
Fréquence:	DVI-D (TMDS, 100 ohms)

Analogique:	15-pin mini D-Sub (detachable cable)
Numérique:	24-pin DVI-D (detachable cable)
Audio:	3.5mm stereo audio line-in
Alimentation:	3-pin AC plug (CEE22)

Tension:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consommation:	35 watt (typ.), <1 watt in power save mode

Net:	5.6kg (with stand) 4.7kg (without stand)
Brut:	5.6kg (with stand) 4.7kg (without stand)

Humidité:	20%–85% (non-condensation)
Température:	0°C–40°C
