Clé Caractéristiques
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • Built-in ViewSonic Education Software supports dynamic learning and enriched classroom experiences.​
  • 64-point advanced touch recognition and palm rejection enhances interactivity and collaboration.​
  • USB-C with 65W power delivery simplifies display, audio, touch, and network connectivity.​
  • Light and motion sensors automatically adjust brightness for better energy efficiency and panel lifespan. ​
​​​
ViewBoard IFP6535-1-1C
Produit Description
Experience fast, smooth, and reliable performance in every class with the ViewBoard® IFP35-1 Series. Available in 65", 75", and 86" models, it’s powered by an octa-core CPU with 128GB storage. EDLA-certified Android 16 ensures secure access to Google Play apps and a responsive system for effective teaching. Integrated ViewSonic Education Software includes tools for whiteboarding, wireless casting, and device management, helping teachers create interactive and engaging lessons while streamlining IT workflows. Built-in ambient light and motion sensors complete the experience, optimizing brightness, conserving energy, and extending panel life for smarter, more efficient classrooms.​

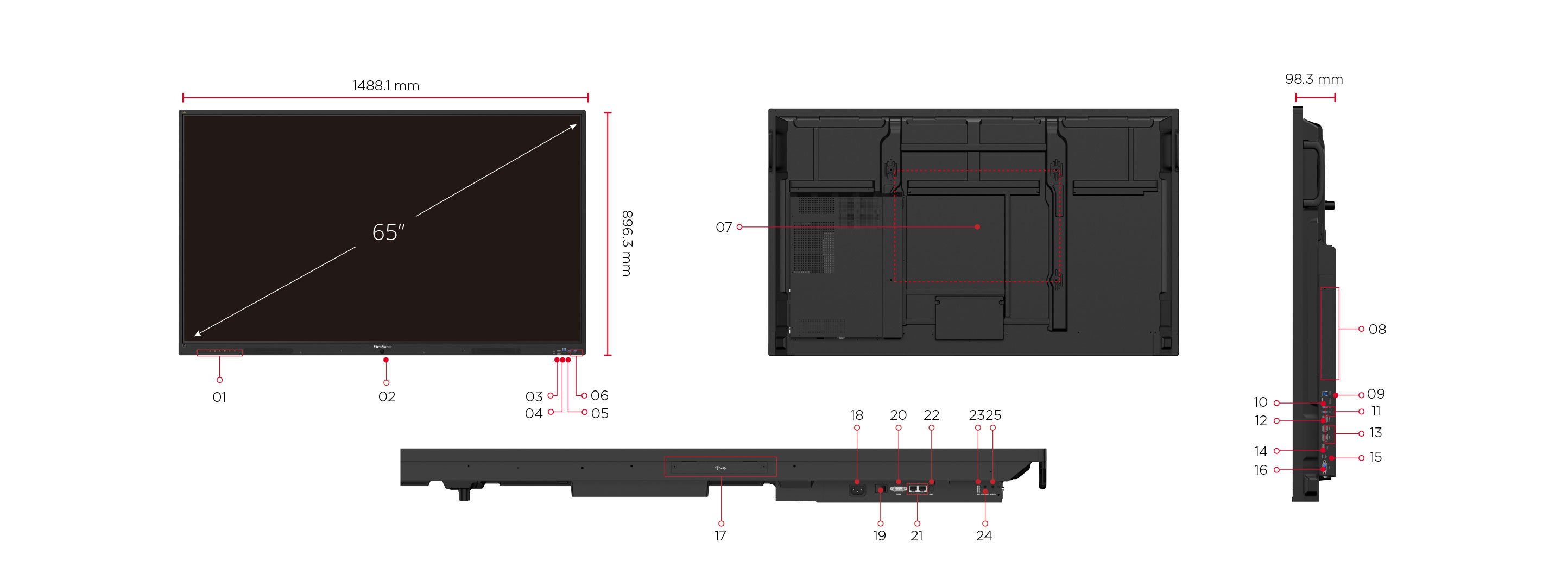

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI 3
  5. Touch 2
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 600 x 400 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Wi-Fi Slot
  18. AC In
  19. Power Switch
  20. RS232
  21. LAN x 2
  22. SPDIF
  23. USB
  24. Audio Out
  25. Audio In
Visitez Nous
  • www.viewsonic.com
  • AFFICHAGE
    Taille de l'écran: 65"
    Type de dalle: TFT LCD Module with DLED Backlight
    Surface d'affichage (mm): 1428.48mm(H) x 803.52mm(V)(64.5" diagonal)
    Rapport d'aspect: 16:9
    Résolution: UHD 3840 x 2160
    Colors: 1.07B colors (8bit+FRC)
    Luminosité: 450 nits
    Rapport de contraste: 5000:1 (max. with DCR enabled)
    Temps de réponse: 6.5ms
    Angles de visualisation: H = 178°, V = 178° typ.
    Durée de vie du rétroéclairage: 50,000 Hours
    Traitement de surface: Hardness: 9H, Anti-glare coating
    Orientation: Landscape
  • PLATE-FORME
    Processeur: Octa-Core CPU
    RAM: 8GB
    Stockage: 128GB
  • TOUCH
    Type/ Technologie: Ultra Fine Touch Technology (IR Recognition)
    Résolution tactile: 32767 x 32767
    Point de contact: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1: HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI2.1 4K@60Hz with CEC, ARC)x1+(HDMI2.1 4K@60Hz with CEC)x1]
    RGB / VGA: x1
    DisplayPort: x1
    Audio: x1
    RS232: x1
    CARTE SD/SDHC: x1 TF Card Slot (Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Audio: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    Type A: x5 (Front x2 and Rear x2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x1 with USB 2.0 for system update)
    Type B: x2 (Front x1 and Rear x1 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2 with 2.0 data)
    Type C: x2 (Frontx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • HAUT-PARLEURS
    20W x 2 Front soundbar
  • SYSTèME D'EXPLOITATION EMBARQUé
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Logiciel d'annotation de base: myViewBoard for Android
    Logiciel d'annotation Pro: myViewBoard for Windows (embedded in VPC)
    Présentation Sans Fil: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • FONCTIONS SPéCIALES
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    Partage simple du réseau local entre l'IFP et l'appareil encastré: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • ALIMENTATION
    Tension: 100-240VAC +/- 10% Wide Range
    Consommation: On: 69.56 W ; Off:< 0.5 W
  • ERGONOMICS
    Montage mural (VESA® ): 600 mm x 400 mm
  • OPERATING CONDITIONS
    Température (º C): 0°C to 40°C
    Humidité: 20% ~ 80% RH Non-Condensing
  • DIMENSIONS (L X H X P)
    Physique (pouces / mm): 58.58 x 35.29 x 3.96 in / 1488 x 896.3 x 98 mm
    Emballage (pouces / mm): 63.78 x 39.80 x 7.05 in / 1620 x 1011 x 179 mm
  • WEIGHT
    Net (lb / kg): 63.27 lb / 28.7 kg
    Brut (lb / kg): 70.70 lb / 35.7 kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • VERSION ENERGY STAR
    8.0
  • CLASSIFICATION EEI
    D
  • CONTENU DE L'EMBALLAGE
    1. Power Cord x1 3 meters,

    by shipping area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Touch cable x1 3 meters

    3. Touch pen (Passive pen) x2

    4. Quick Start Guide (With Compliance statement )

    5. Screw x4 (for wall mount)

    6. HDMI cable x1 3 meters,

    (HDMI LA certified)

    7. Remote controller x1

    8. AAA battery x2

    9. Warranty card (only for VSCN)
  • PC COMPATIBLE à ENCASTRER
    VPCF5-S55-G1-2A /VPCF5-W55-G1-2A / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
