Clé Caractéristiques
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • 64-point touch with palm rejection and Write Away offer precise, instant annotation.
  • Integrated ViewSonic Education Software empowers seamless classroom experiences.
  • Built-in 2.1-channel speakers with subwoofer and 8-microphone array deliver rich audio.
  • Light and motion sensors optimize brightness, improving energy efficiency and panel lifespan.

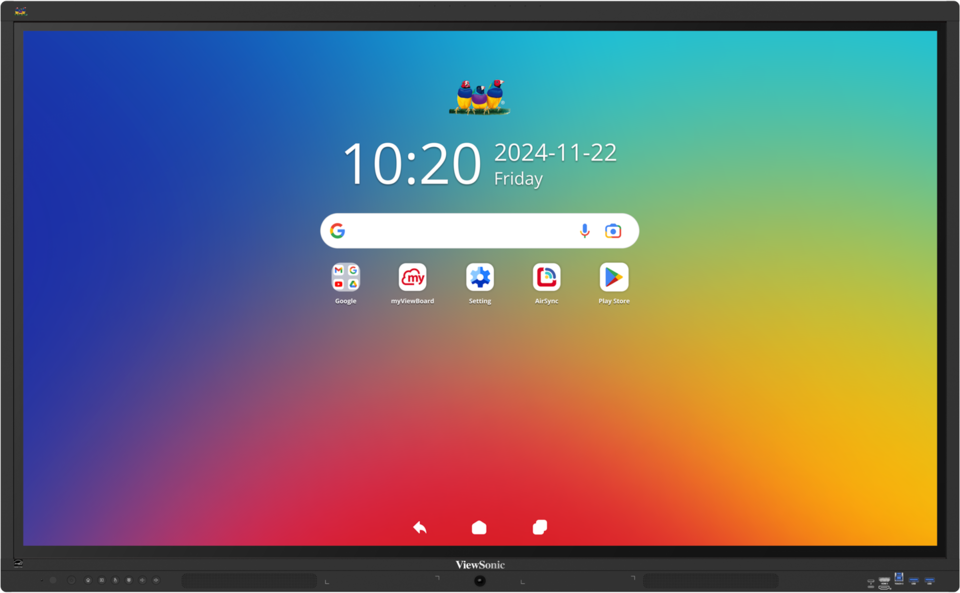

ViewBoard IFP5541-1-1C
Produit Description
Bring powerful performance and effortless interactivity to any classroom with the ViewBoard® IFP41-1 Series, available in 55", 65", 75", 86", and 98" models. Built-in ambient light and PIR motion sensors allow for automatic screen brightness adjustment to support sustainability, while 64-point touch technology and instant annotation with Write Away offer smooth, responsive collaboration. Dual USB-C ports provide seamless connectivity with up to 100W power delivery, enabling convenient single-cable charging and data transfer. As an EDLA-certified interactive display with Android 16, it ensures regular security updates and reliable access to the latest Google Play Store apps. Integration with ViewSonic Education Software enhances functionality with whiteboarding, wireless casting, and device management solutions, creating a smart, secure, and connected teaching experience.

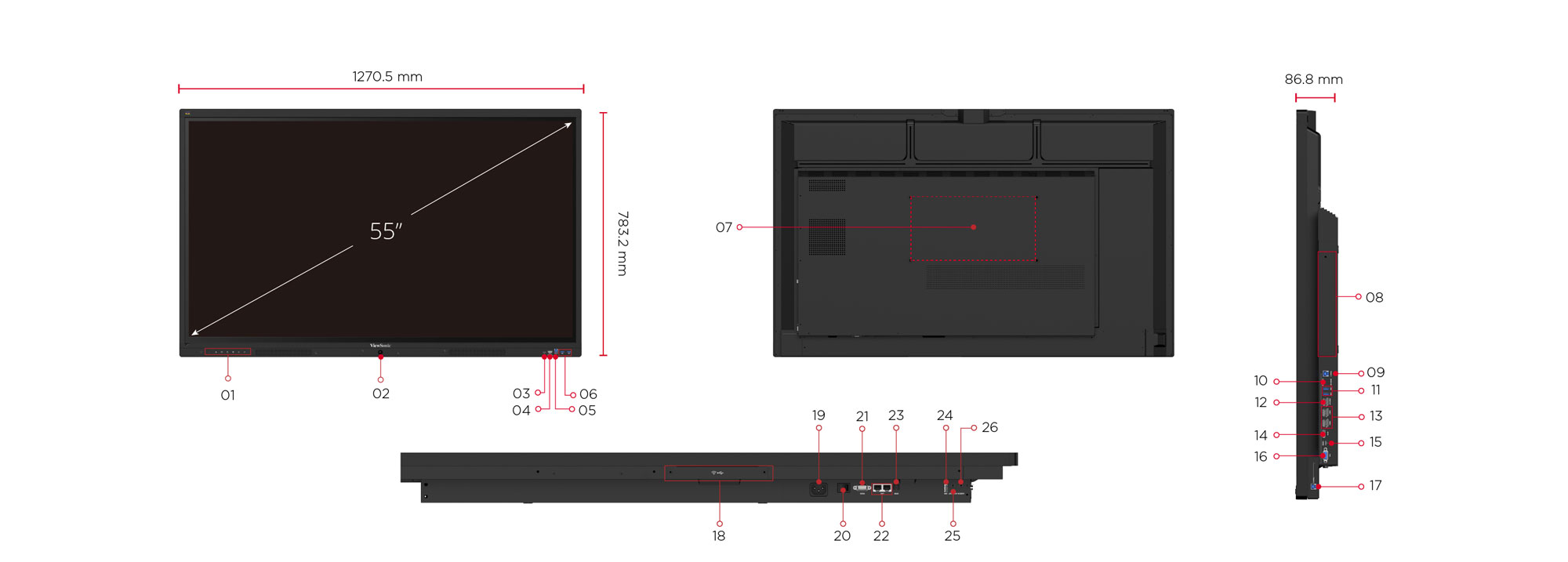

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI
  5. Touch 3
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 400 x 200 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Touch 2
  18. WiFi Slot
  19. AC In
  20. Power Switch
  21. RS232
  22. LAN x 2
  23. SPDIF
  24. USB 2.0
  25. Audio Out
  26. Audio In
Visitez Nous
  • www.viewsonic.com
  • AFFICHAGE
    Taille de l'écran: 55"
    Type de dalle: TFT LCD Module with DLED Backlight
    Surface d'affichage (mm): 1209.6mm (H) x 680.4mm (V) (54.6")
    Rapport d'aspect: 16:9
    Résolution: UHD 3840x2160
    Colors: 1.07B colors
    Luminosité: 450 nits
    Rapport de contraste: 5000:1 (max. with DCR enabled)
    Temps de réponse: 6.5ms
    Angles de visualisation: H = 178°, V = 178° typ.
    Durée de vie du rétroéclairage: 50,000 hours
    Traitement de surface: Hardness:9H, Anti-glare coating
    Orientation: Landscape
  • PLATE-FORME
    Processeur: Octa-Core CPU
    RAM: 8GB
    Stockage: 128GB
  • TOUCH
    Type/ Technologie: Ultra Fine Touch Techology (IR Recognition)
    Résolution tactile: 32767×32767
    Point de contact: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1:HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI 2.1 4K@60Hz with CEC, ARC)x1+(HDMI 2.1 4K@60Hz with CEC)x1]
    RGB / VGA: x1
    DisplayPort: x1
    Audio: x1
    RS232: x1
    CARTE SD/SDHC: TF Card Slot(Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Audio: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    Type A: x5 (Front x 2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
    Type B: ×3 (Front ×1, Rear ×2 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2/3 with 2.0 data)
    Type C: x2 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • HAUT-PARLEURS
    20W x 2 Front soundbar + 15W x 1 subwoofer
  • MICROPHONE
    Built-in 8-array microphone
  • SYSTèME D'EXPLOITATION EMBARQUé
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Logiciel d'annotation de base: myViewBoard for Android
    Logiciel d'annotation Pro: myViewBoard for Windows (embedded in VPC)
    Présentation Sans Fil: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • FONCTIONS SPéCIALES
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    Partage simple du réseau local entre l'IFP et l'appareil encastré: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • ALIMENTATION
    Tension: 100-240V AC +/- 10% Wide Range
    Consommation: On:74.25 W Off:< 0.5 W
  • ERGONOMICS
    Montage mural (VESA® ): 400 x 200
  • OPERATING CONDITIONS
    Température (º C): 0°C to 40°C
    Humidité: 20% ~ 80% RH non-condensing
  • DIMENSIONS (L X H X P)
    Physique (pouces / mm): 50.00 x 30.83 x 3.42 in / 1270.5 x 783.2 x 86.8 mm
    Emballage (pouces / mm): 54.92 x 34.45 x 8.46 in / 1395 x 875 x 215 mm
  • WEIGHT
    Net (lb / kg): 54.45lb / 24.7kg
    Brut (lb / kg): 72.53 lb / 32.9kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • VERSION ENERGY STAR
    8.0
  • CLASSIFICATION EEI
    E
  • CONTENU DE L'EMBALLAGE
    1. Power Cord x1 3 meters,

    by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Type-C cable x1 1.8 meters , USB-IF certified

    3. USB Touch cable x1 3 meters

    4. Touch pen (Passive pen) x 2

    5. Quick Start Guide (With Compliance statement )

    6. Screw x 4 ( wall mount 4)

    7. HDMI cable x1 3meters,

     (HDMI LA certified)

    8. Remote controller x1

    9. AAA battery x2
  • PC COMPATIBLE à ENCASTRER
    VPCF5-S55-G1-2A /VPCF5-W55-G1-2A / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
