Archived

TD2421

24" 2-point Touch Screen Monitor

SuperClear® technology
Full HD 1080p resolution
Supports Windows® 7/8/10
HDMI, VGA and DVI inputs
Dual integrated speakers

GALLERY

REVIEWS

Tạp chí PCMag

“ViewSonic là thương hiệu màn hình tốt nhất 2020”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Touch Screen: Optical, 2-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.88mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7 certified; macOS tested
Mac® Resolution (min): 1920x1080

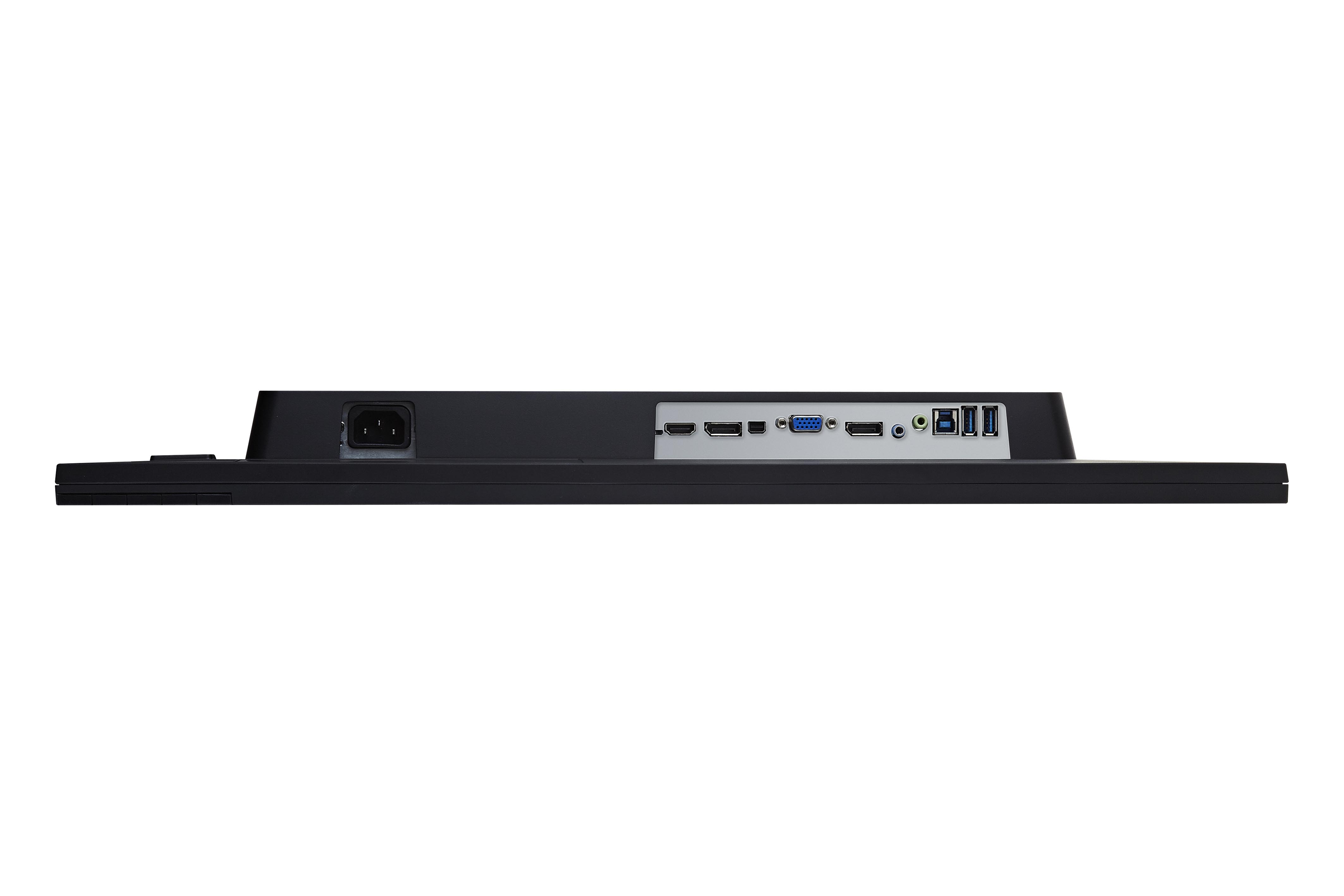

Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 11.5W
Eco Mode (optimized): 13.5W
Consumption (typical): 16.5W
Consumption (max): 21W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Tilt (Forward/Back): -6º / 22º
Weight (imperial)
Net (lbs): 11.4
Net Without Stand (lbs): 9.5
Gross (lbs): 16.1
Weight (metric)
Net (kg): 5.2
Net Without Stand (kg): 4.3
Gross (kg): 7.3
Dimensions (imperial) (wxhxd)
Packaging (in.): 25.2 x 18.1 x 7.9
Physical (in.): 22.5 x 15.4 x 9.4
Physical Without Stand (in.): 22.5 x 13.4 x 2.3
Dimensions (metric) (wxhxd)
Packaging (mm): 640 x 460 x 200
Physical (mm): 571 x 392 x 240
Physical Without Stand (mm): 571 x 340 x 58
General
PACKAGE CONTENTS: TD2421 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
