LCD Display
VG2428wm
Key Features
Product Description

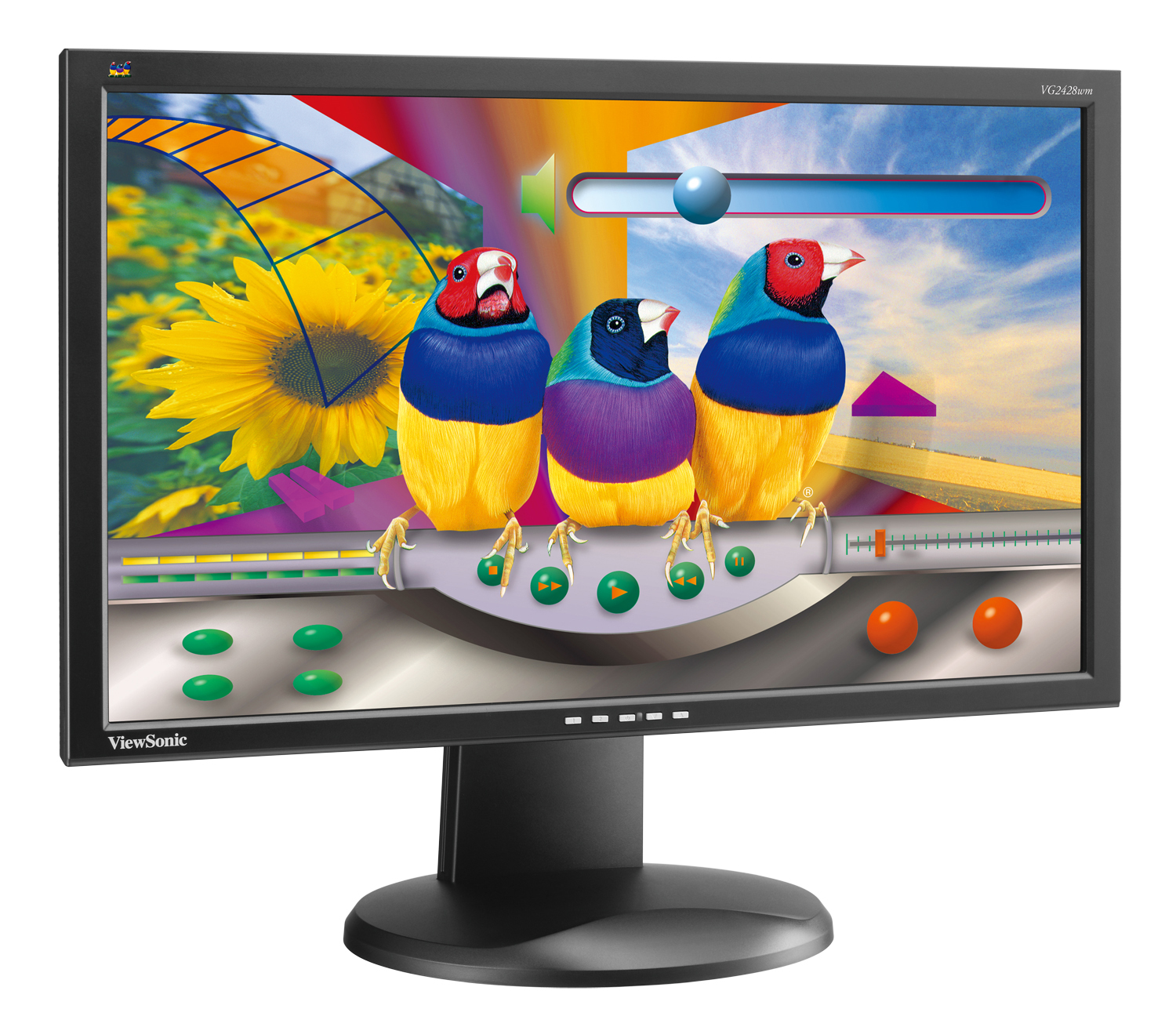

The 24" (23.6" viewable) VG2428wm LCD is the big and wide, multimedia solution to your demanding business needs. Featuring Full HD 1920x1080 resolution and 100,000:1 dynamic contrast ratio, this high performance display is ideal for graphics professionals, high-def multimedia visuals and other digital content. The DVI-D connector ensures your high-def content stays high-def, while the USB ports expand your connectivity for greater convenience. The fully adjustable ergonomic base enhances your comfort. The slim bezel allows you to have a large screen on your desk and use minimal space. Demanding professionals will love the feature packed, high-performance, widescreen VG2428wm.
Visit Us
- www.viewsonic.com
-
LCD
Type: 23.6" wide Color TFT Active Matrix LCD with 16:9 aspect ratio Display Area: 23.6 inch Optimum Resolution: 1920x1080 Contrast Ratio: 1000 :1 (typical), 100,000:1 (DCR) Brightness: 300 cd/m2 (typ) Viewing Angles: 170°(H), 160°(V) Response Time: 5ms Panel Surface: Anti-Glare, hard coating -
VIDEO INPUT
Analog: RGB Analogue (75 ohms, 0.7/1.0 Vp-p) Digital: DVI-D(TMDS, 100ohms) Frequency: Fh: 22-82KHz; Fv: 50-75Hz Sync: H/V Separated -
COMPATIBILITY
PC: VGA up to 1920×1080 non-interlaced Mac: Power Mac, up to 1920×1080 -
CONNECTOR
Analog: 15 pin mini D-sub×1 Digital: DVI-D USB: 2.0x2(2 down stream/1 up stream) Audio: 3.5 mm Audio in Power: Built-in power Adapter, 3-Pin plug -
AUDIO
Speakers: 2x2 watt -
POWER
Voltage: AC 100-240V(Universal); 50/60Hz(Switch) Consumption: 45(typ.) -
CONTROLS
Basic: Power, Mute,[1], Up, Down, [2] OSD: Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute, Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color [R, G, B] Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, Setup menu: Language select, resolution notice, OSD position, OSD timeout, OSD background, sleep, memory recall
-
OPERATING CONDITIONS
Temperature: 0-40°C(32-104°F) Humidity: 20-90%(Non condensed) -
DIMENSIONS
Physical: 564mm (width) x 442mm (height) x 250mm (depth) -
WEIGHT
Net: 9.6 kg -
WALL MOUNT
100mm x 100mm
