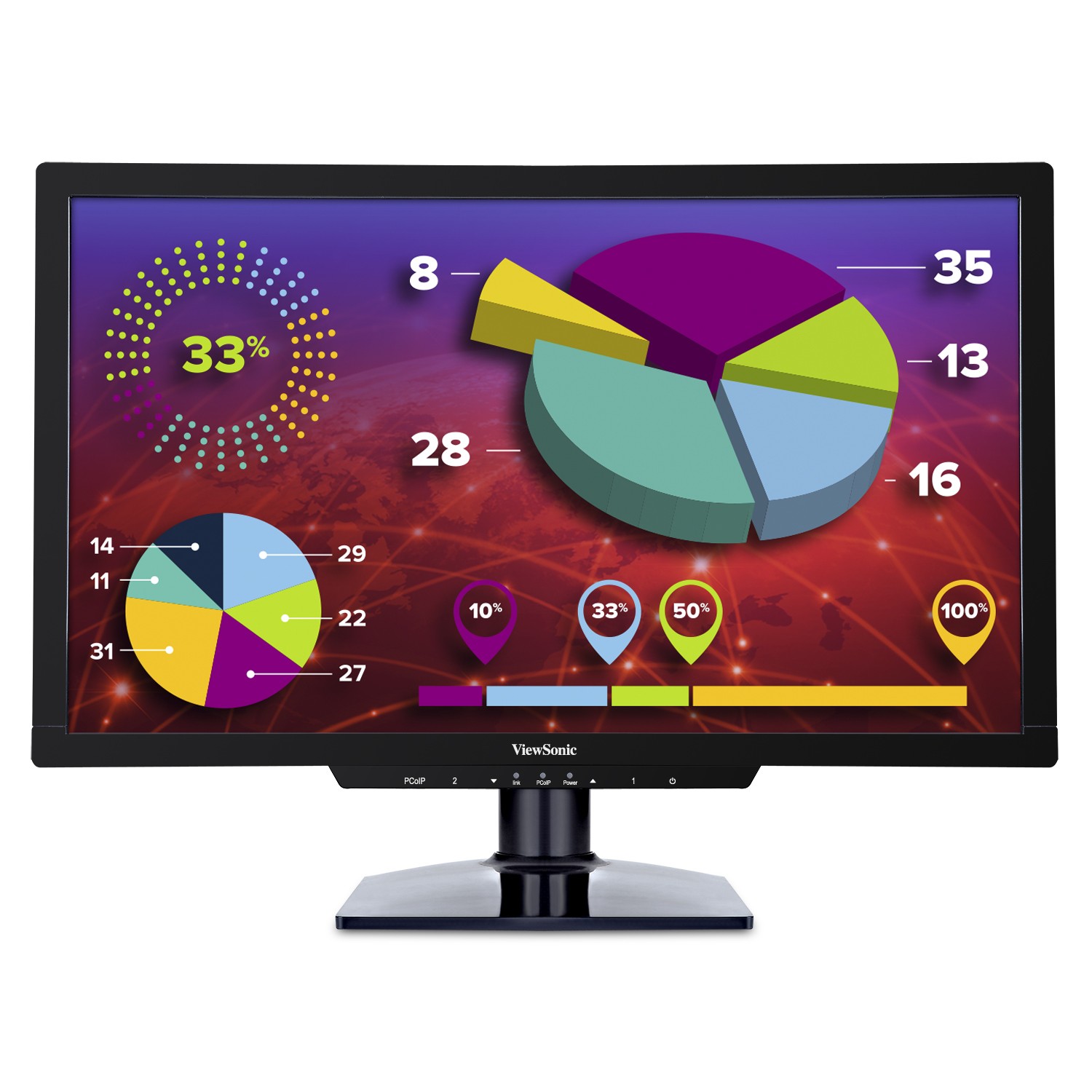

ViewSonic SD-Z225 Optimized for VMware View. 22" (21.5" viewable) Zero Client Monitor

Key Features

Product Description

The ViewSonic SD-Z225 22” (21.5” viewable) Zero Client monitor is based on the Teradici Tera 2321 processor, with hardware accelerated PCoIP support. The SD-Z225 Zero Client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in VMware-based networks. The SD-Z225 is a true Zero Client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware-certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.

Visit Us

www.viewsonic.com

CORE

CPU Processor Type: Teradici Tera2321

Image Performance: 50Mpps (DVI out)
GRAPHICS

Graphic Chipset: None

Resolution: 1920x1200 (for single display)
MEMORY

System: DDR3 512MB @ 1066MHz

Storage: None
SOFTWARE

Protocols: VMware PCoIP
COMMUNICATION

Ethernet LAN: 10/100/1000 MB

DISPLAY

Type:	22" (21.5" viewable) Wide Color TFT Active Matrix LED
Display Area:	23.5" horizontal x 13.2" vertical; 21.5" diagonal
Optimum Resolution:	1920x1080
Brightness:	250 cd/m2 (typ.)
Contrast Ratio:	1000:1 (typ.)
Dynamic Contrast Ratio:	20,000,000:1
Viewing Angles:	170º horizontal, 160º vertical
Response Time:	5ms (typ)
Backlight:	White-light LED
Backlight Life:	30,000 hours (min.)
Panel Surface:	Anti-glare, hard-coating (3H)

VIDEO INPUT

Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Frequency: Fh: 24~82kHz, Fv: 50~75Hz

Sync: Separate Sync

CONNECTOR

USB:	USB 2.0 (x4)
Video In:	15-pin mini D-sub (VGA)
Video Out:	DVI-I (x1)
LAN:	RJ45 (x1)
Microphone In:	3.5mm mini jack (x1)
Headphone:	3.5mm mini jack (x1)
Line In:	3.5mm mini jack
Power:	DC In

AUDIO

Internal Speakers: 2-watt (x2)
POWER

Voltage: 19V DC; 3.42A, 65W

Consumption: 24W (typ)
ERGONOMICS

Tilt: Forward 5º / Back 20º

CONTROLS

Basic:	PCoIP, 2, Down, Up, 1, Power
OSD:	Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)

OPERATING CONDITIONS

Temperature: 32–95ºF (0–35ºC)

Humidity: 15–90% (non-condensing)
DIMENSIONS (WXHXD)

Physical with Stand: 20.2 x 14.8 x 7.5 in. / 512.4 x 376.7 x 189.9 mm

Packaging: 22.5 x 17.4 x 6.2 in. / 572 x 442 x 158 mm
WEIGHT

Net: 9.9 lb. / 4.5 kg

Gross: 13.7 lb. / 6.2 kg
WALL MOUNT

VESA: 100mm x 100mm
COMPATIBILITY

PC: PC compatibles (VGA up to 1920x1080 non-interlaced)

Mac®: Up to 1920x1080
RECYCLE/DISPOSAL

Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS

SD-Z225 Zero Client Monitor, power cord, power adapter, VGA cable, Quick Start Guide, ViewSonic Wizard CD
OPTIONAL ACCESSORIES

sold separately: USB Keyboard & Mouse (VMP10B_KM1US05)
