Projector
LS831WU
Key Features
- 0.25 ultra short throw for space saving installation
- 2nd generation Laser Phosphor technology with 20,000 hours lifespan
- 4,500 ANSI Lumens offering bright images in any environment
- Larger screen size with lower cost-per-inch
- Cost-effective built-in HDBaseT receiver
- Creativity realized by 360° projection
Product Description

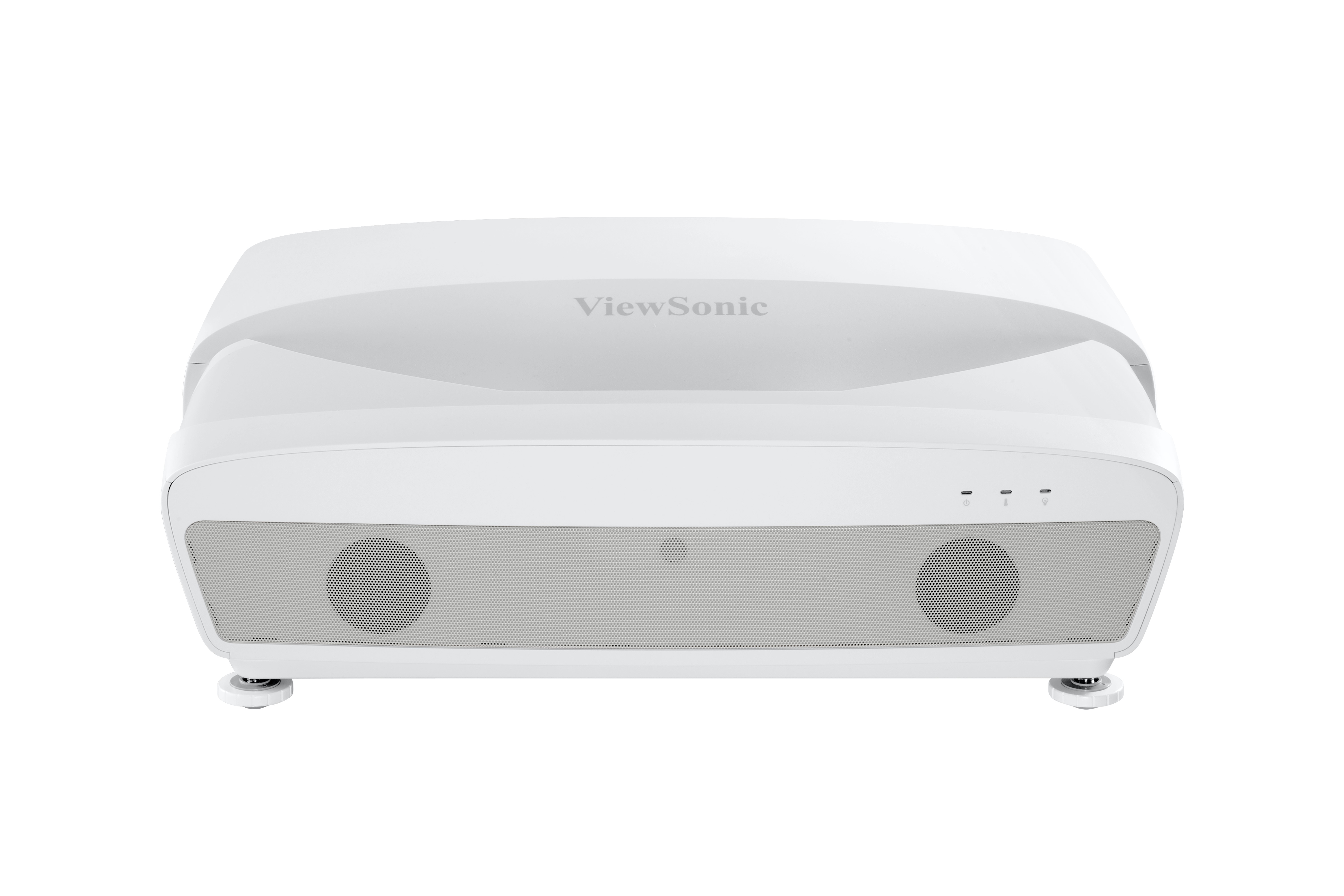

ViewSonic’s LS831WU is an advanced 4,500 ANSI Lumens WUXGA ultra short throw installation projector perfect for public and commercial display applications. With a 0.25 throw ratio, users can easily get 100” screen from only 21 cm away. Screen size can further be expanded to up to 150" at a lower cost-per-inch compared to commercial displays. Adopting the 2nd generation laser phosphor technology, it offers consistent high brightness for a reliable 20,000 hours lifespan. Built-in HDBaseT receiver and 360° projection capability together ensure the ease of use desired. The embedded 20W cube speakers offer powerful audio right out of the box with three fine-tuned audio modes suitable for different application scenarios.
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Projection System: 0.48" WUXGA Native Resolution: 1920x1200 Brightness: 4500 ANSI Lumens Contrast Ratio: 3000000:1 Display Color: 1.07 Billion Colors Light Source Type: Laser Phosphor system Light Source Life (Normal): up to 20000 Lamp Watt: Nichia 67W x2 Lens: F=2, f=2.44mm Projection Offset: 140%±6% Throw Ratio: 0.252 Optical Zoom: Fixed Digital Zoom: 0.8x-2.0x Image Size: 70"~200" Throw Distance: 0.06-0.72m, (100”@0.21m) Keystone: H:+10°/-8° , V:+/-10° Audible Noise (Normal): 34dB Audible Noise (Eco): 29dB Input Lag: 16ms Resolution Support: VGA(640 x 480) to 4K(3840 x 2160) HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility: NTSC, PAL, SECAM Horizontal Frequency: 15K~102KHz Vertical Scan Rate: 23~120Hz -
INPUT
Computer in (share with component): 1 Composite: 1 S-Video: 1 HDMI: 2 , (HDMI 2.0 (HDCP 2.2) Audio-in (3.5mm): 1 Audio-in (RCA R/L): 1 3D VESA (Sync): 1 HDBaseT: 1 RJ45 Input: 1, (LAN control) -
OUTPUT
Monitor out: 1 Audio out (3.5mm): 1 Speaker: 10W Cube x 2 USB Type A (Power): 1 (5V/ 1.5A), (share with service) 12V Trigger (3.5mm): 1 (3.5mm) -
CONTROL
RS232 (DB 9-pin male): 1 RJ45: 1 -
OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz , (AC in) Power Consumption: Normal: 504W, Standby: <0.5W Operating Temperature: 0~40℃ Net Weight: 9.9kg Dimensions (WxDxH) with Adjustment Foot: 492x387x157mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, (23 languages) -
STANDARD ACCESSORY
Power Cord: 1 VGA Cable: 1 Remote Control: 1, (with laser pointer) QSG: 1
