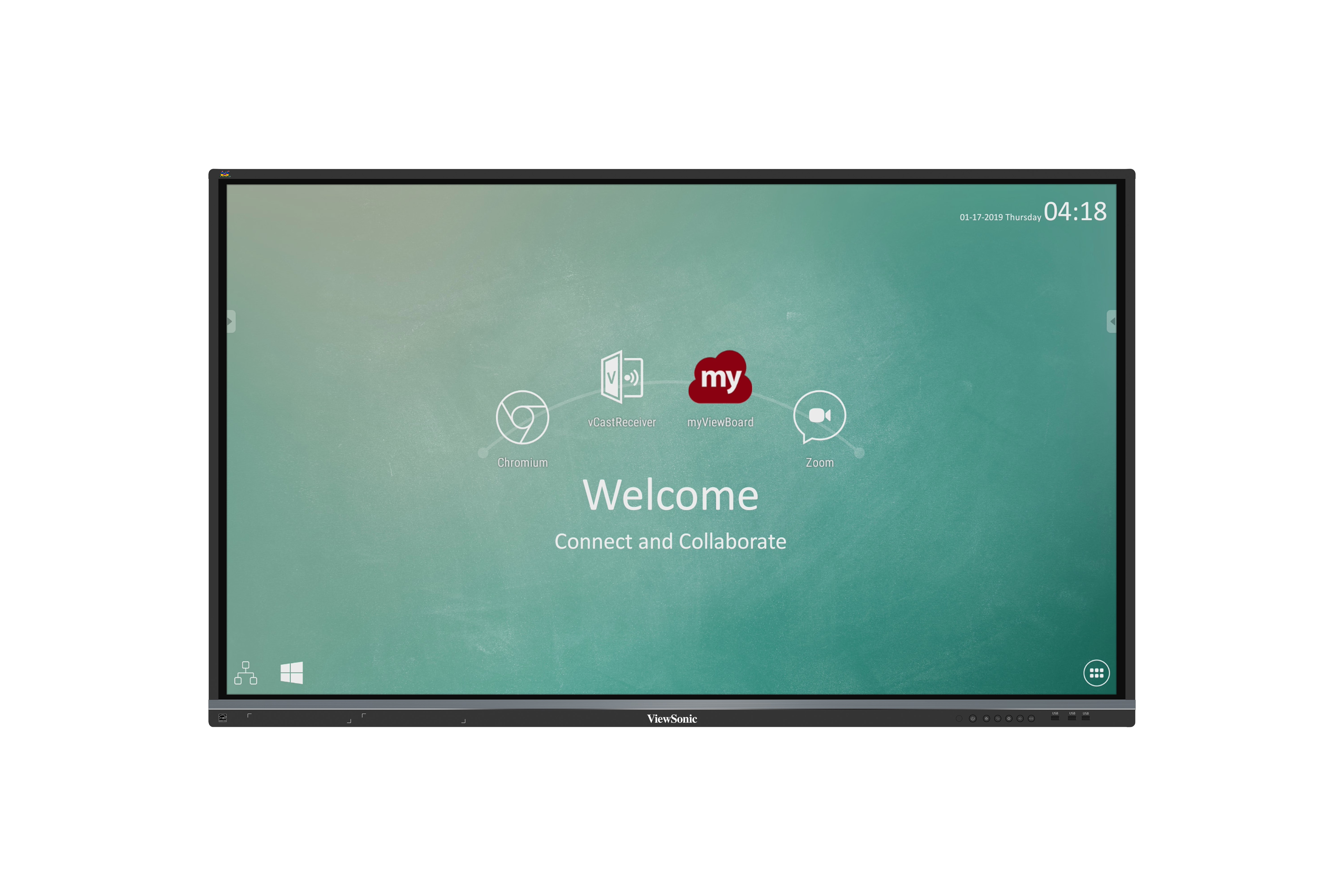

ViewBoard
IFP5550
Key Features
- Ultra fine touch technology enables real-time response dual-pen writing with a 3mm diameter pen tip
- 2.1 Stereo sound with a built-in woofer
- Built-in myViewBoard™ whiteboarding software to collaborate on the go
- 4-way split screen content sharing with built-in ViewBoard® Cast software
- SmartPort™ shared front USB ports for internal & external PCs
Product Description
The ViewBoard® IFP50 series embraces ultra fine touch technology to offer fine precision writing. Along with slim IR touch and its optimized integration, the processing time is faster than traditional IR panels. Meanwhile, smooth dual-pen writing with our new, slim 3mm pens enables teachers and students to work efficiently on any detailed tasks that require the accurate use of fine tipped pens during group discussion. On top of that, the ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience, so that even at the edge you can write clearly and thinly. It is also well integrated with myViewBoard™ whiteboarding software to collaborate on the go, and further complimented by ViewBoard® Cast software for 4 way split screen content sharing.
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 55" Type/Tech: TFT LCD Module with DLED Backlight. Display Area (mm): 1209.6 (H) x 680.4 (V) (54.64” diagonal) Aspect Ratio: 16:9 Native Resolution: UHD 3840x2160 (Pixels) Colors: 1.07B colors (10bit) Brightness: 350 nits (typ.) 300 nits (min.) Contrast Ratio: 5000:1 (DCR) Response Time: 8ms Viewing Angles: H = 178, V = 178 Typ. Backlight Life: 30,000 Hours (Min) Surface Treatment: Anti-Glare Bezel: Slim Orientation: Landscape -
PLATFORM
Processor: ARM Cortex A73 Dual-core 1.2GHz RAM: 2GB DDR4 Storage: 16GB -
TOUCH
Type/ Tech: IR Recognition Touch Resolution: 32767 x 32767 Touch Point: 20 points touch, 10 points writing -
INPUT
HDMI: 2.0 x3 (3840x2160 @60Hz) RGB / VGA: x1 Audio: x1 (PC audio in) CVBS: x1 RS232: x1 OPS: x1 PC Slot (proprietary) -
OUTPUT
HDMI: x1 Audio: x1 (Earphone out) SPDIF: 1 (optical) -
LAN
RJ45: x1 -
USB
Type A: USB 2.0 x4 (including 2 USB port in front), USB 3.0 x2 (including 1 USB port in front) Type B: x2, for touch -
SPEAKERS
SPEAKERS: 10W x 2 + 15W x 1 -
EMBEDDED OS
Embedded OS: Android 7 -
BUNDLE SOFTWARE
Basic Annotation Software: myViewBoard / vBoard Lite Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC) Wireless Presentation with Touch Feedback: Viewboard Cast: Yes ViewSonic Launcher: Embedded -
SPECIAL FEATURES
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device: Yes -
POWER
Voltage: 100-240VAC +/- 10% Wide Range Consumption: 81W (Typ.) , < 0.5 W ("Off") -
ERGONOMICS
Wall Mount (VESA® ): 400 x 200 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 10% ~ 90% RH non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm Packaging (inch / mm): 56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm -
WEIGHT
Net (lb / kg): 68.34 lb / 31 Kg Gross (lb / kg): 85.98 lb / 39 Kg -
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. Power cable (3 meters) x 4, 2. Remote control, 3. USB cable (3 meters), 4. AV cable, 5. Touching pen x 2, 6. Quick Start Guide, 7. RS232 adapter, 8. Clamp x 5, 9. Plate, 10. Screw x 8, 11. HDMI cable -
COMPATIBLE SLOT-IN PC
Compatible Slot-in PC: VPC14-WP series, VPC10-WP series, VPC15-WP series, VPC16-WP series, VPC17-WP series
