ePoster
EP4220
Key Features
Product Description

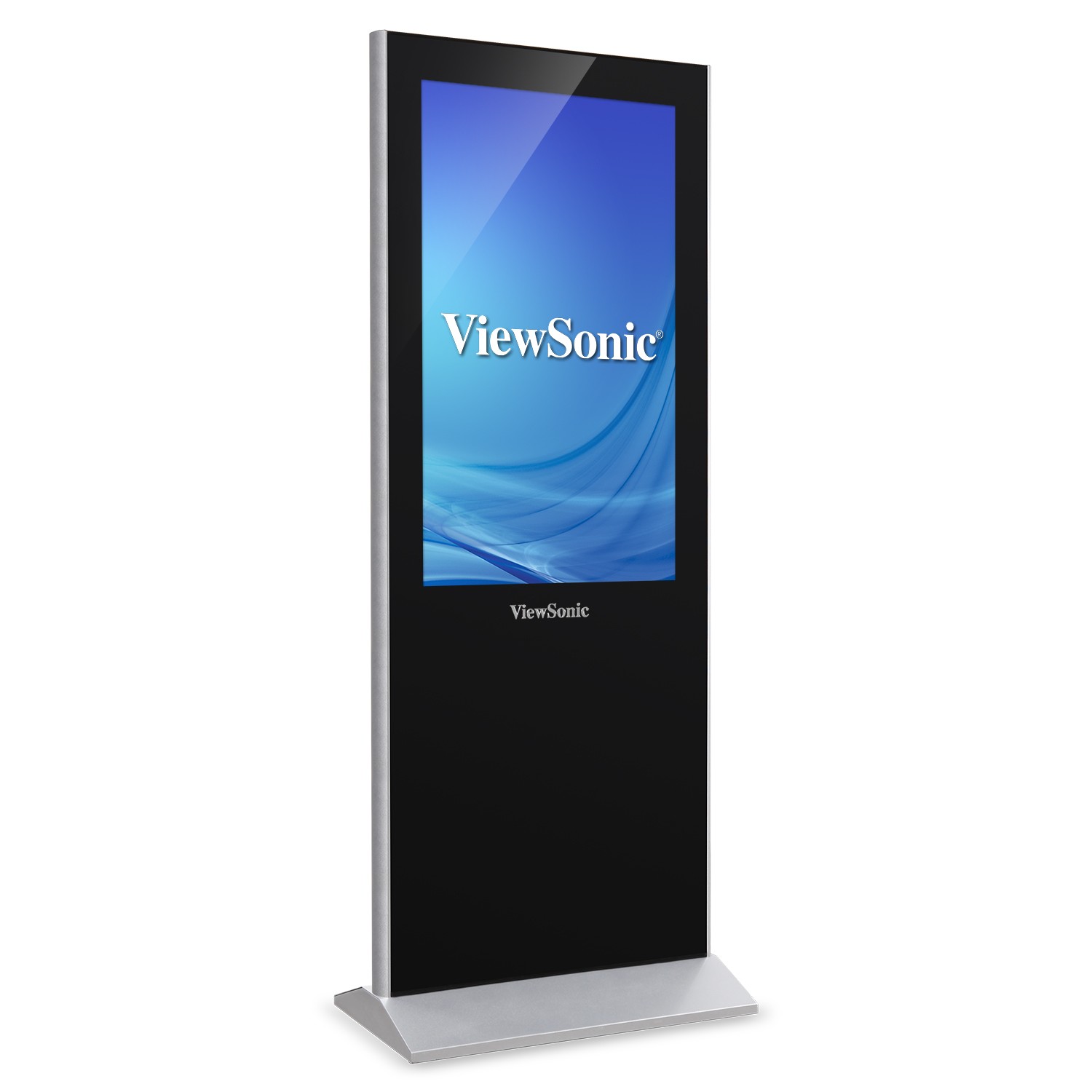

Free-standing dynamic advertising is easy with ViewSonic’s EP4220—an ultra-slim 42" Full HD digital ePoster LED display. Retail and information messaging is easily broadcast via the display’s internal media player, or by connecting your own media to the industry-standard HDMI or VGA input connections. ViewSonic’s ePoster display can also be connected to a corporate network by adding a network capable media player. Security is achieved through the locking back cover. Compatible ViewSonic media players are available in both X86 and RISC (Linux) configurations. This display is ideal in highvisibility locations such as retail settings, hotel lobbies, banks and universities.
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 42" Type/Tech: TFT LCD Module with LED Backlight Display Area (mm): 930.24(H) x 523.26(V) Aspect Ratio: 9:16 Native Resolution: 1080x1920 Colors: 16.7M Brightness: 350 nits (typ.) Contrast Ratio: 3000:1 Typ. Response Time: 6.5ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 30,000 Hours Typ. Surface Treatment: AG coating (3H) Orientation: Portrait -
INPUT
HDMI: x1 RGB / VGA: x1 Audio: x1 PC audio(3.5 mm) RS232: x1 SD/SDHC: SD/CF x1, (for expand storage) -
USB
Type A: x1 -
SPEAKERS
2.5W x 2 -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table HDMI: 480i, 480p,720p,1080i,1080p -
CONTROLS
Physical- Top OSD: PICTURE: Picture Mode, Color Temperature, Aspect Ratio, Noise Reduction, Screen
AUDIO: Sound Mode, Balance, Auto Volume, Surround Sound, EQ
TIME: Clock, On/Off Time, Time Volume, Display Mode, Display Mirror, User Reset, Software Version, Software Update (USB)
OPTION: OSD Language, Subtitle Color, Subtitle BG Color, Subtitle Speed, Play Mode, Photo Time, Picture Slide Show, USB Copy ModeMultimedia: JPG, MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4, WMA, MP3, M4A (AA CC) -
POWER
Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range Consumption: 180W (max.)
< 0.5 W ("Off") -
OPERATING CONDITIONS
Temperature (º C): 0°C to 45°C Humidity: 10% ~ 85% non-condensing -
DIMENSIONS
(W X H X D)Physical (inch / mm): 27.0 x 72.2 x 17.7 / 685 x 1835 x 450 Packaging (inch / mm): 32.3 x 76.7 x 21.3 / 820 x 1950 x 540 -
WEIGHT
Net (lb / kg): 125 / 57 Gross (lb / kg): 147 / 67 -
PACKAGE CONTENTS
1. EP4220 ePoster 2. power cable 3. VGA cable 4. remote control with batteries 5. Quick Start Guide 6. ViewSonic Wizard CD (with User Guide)
*Actual content may differ from market to market
