Key Features

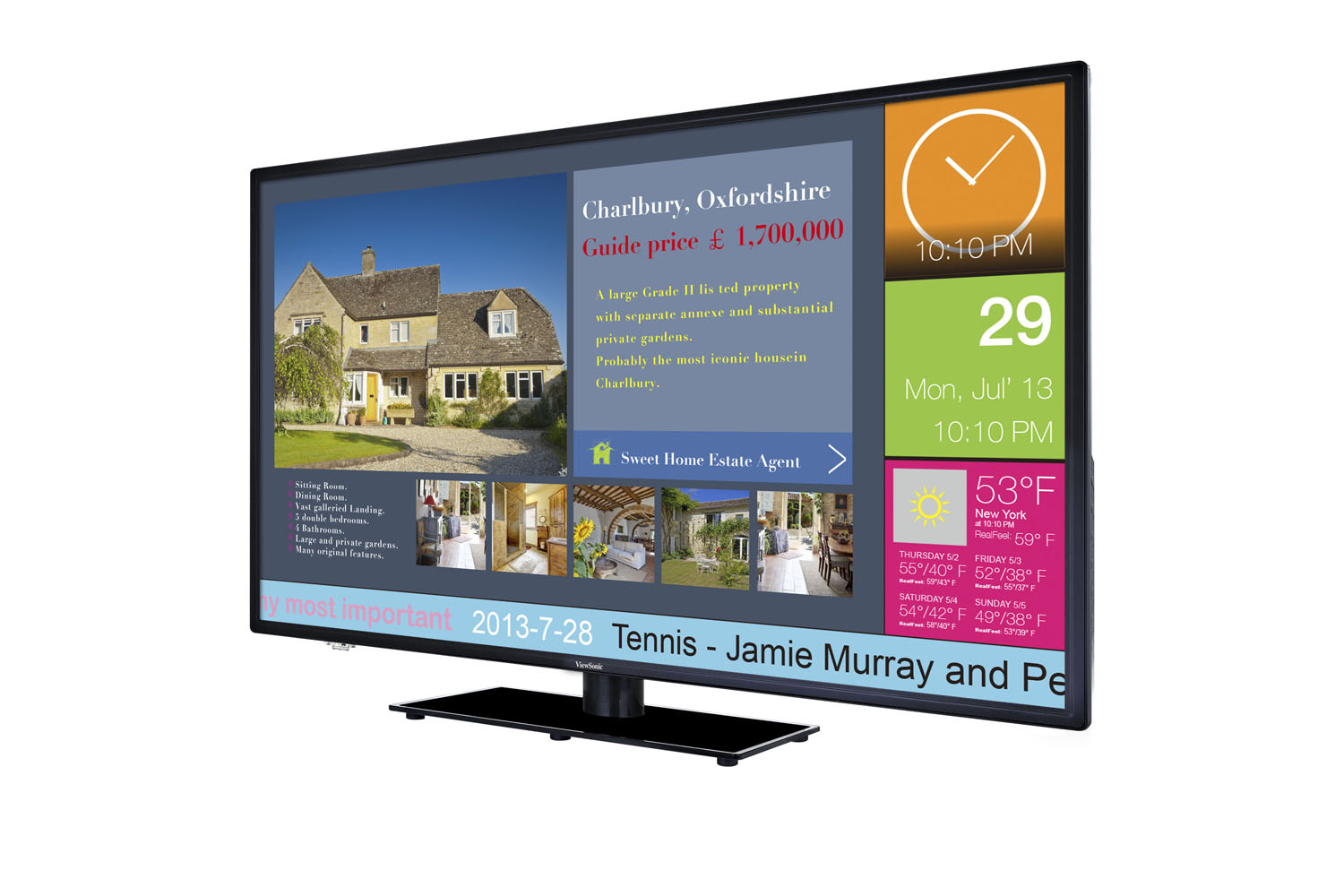

CDE3200-L
Product Description
The ViewSonic CDE3200-L 32” (32’’ viewable) commercial LED display features 1920x1080 native resolution to deliver brilliant high-definition image quality. Its versatile range of HDMI, VGA, CVBS, YPbPr and RS232 integrated inputs allow it to connect with various AV devices. And for convenient control of multiple devices, RS232, IR pass-through, HDMI CEC remote control pass-through and remote control out functions are supported. USB-playback of multimedia content (jpg & mp3) and customized hospitality-mode cloning and updating provide greater ease of use, while dual built-in 10W stereo speakers provide the sound. The CDE3200-L is a complete multimedia entertainment package for hotel, restaurants and other venues.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 32"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 698.4(H) x 392.85 (V) (31.5” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: 1920 x 1080
    Colors: 16.7M
    Brightness: 300 nits (typ.)
    Contrast Ratio: 3000:1 Typ.
    Response Time: 6.5ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours Typ.
    Surface Treatment: Hard coating (3H)
    Orientation: Landscape
  • INPUT
    HDMI: x3
    RGB / VGA: x1
    Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
    CVBS: x1
    YPbPr: x1
    RS232: x1, w/ IR pass thru
  • OUTPUT
    Audio: x1 Earphone Out
    SPDIF: x1
    IR Pass Thru: thru RS232
    Remote Control Out: x1
  • USB
    Type A: x1
  • SPEAKERS
    10W x 2
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i,576i
    YPbPr: 480i, 480p,720p, up to 1080p
    HDMI: 480i, 480p,720p, up to 1080p
  • CONTROLS
    Physical- Top OSD: PICTURE: Picture Settings Picture Mode(Power Saving/Dynamic/Stander/Movie/User)
    Screen Size ( Wide/Cinema/Zoom/Normal)
    PC Settings, Color Temparature ( Normal/Warm/Cool)
    Backlight (Medium/High/Low)
    Advanced Picture Settings(Dynamic Contrast-Low/Medium/high/off; Film Mode-on/off; Noise Reduction-Low/Medium/high/off; MPEG Noise Reduction- low/Medium/high/off.
    SOUND: Sound Setting( Standard/Soft/User/Dynamc),Analog Sound, Digital Sound, Digital Audio Output, Equalizer Setting.
    PARENTAL: Lock Parent Control, V-CHIP,Change Password, Keypad Lock, Source Lock, System Lock.
    SETUP: Closed Caption, Menu Language( English/French/Spanish/German/Portuguese), Clock, OSD Transparency, OSD Timer.
    OTHERS: Blue Back, No Signal Power Off, No Operation Power Off, User Moniro, Audio Only, TV ID, All Reset.
    Multimedia: PICTURE: JPG
    AUDIO: MP3
  • POWER
    Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range
    Consumption: 38W (typ), 55W (max)
    < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 200 x 100
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% @40°C non-condensing
  • DIMENSIONS
    (W X H X D)
    Physical (inch / mm): 29.5x19.2x 7.1 / 747.8 x 488.1 x 180 (w/ Stand)
    29.5x17.8x2.54 / 747.8 x 452.4 x 64.5 (w/o Stand)
    Packaging (inch / mm): 33.5x23x5.20 / 850x 585x 132 (w/o Stand)
  • WEIGHT
    Net (lb / kg): 14.32 / 6.5 (w/o stand);
    16.1 / 7.3 (with Stand)
    Gross (lb / kg): 19.83 / 9.0
  • PACKAGE CONTENTS
    1. CDE3200-L display 2. power cable 3. remote control with batteries 4. Quick Start Guide 5. ViewSonic wizard CD (with User Guide)

    *Actual content may differ from market to market
