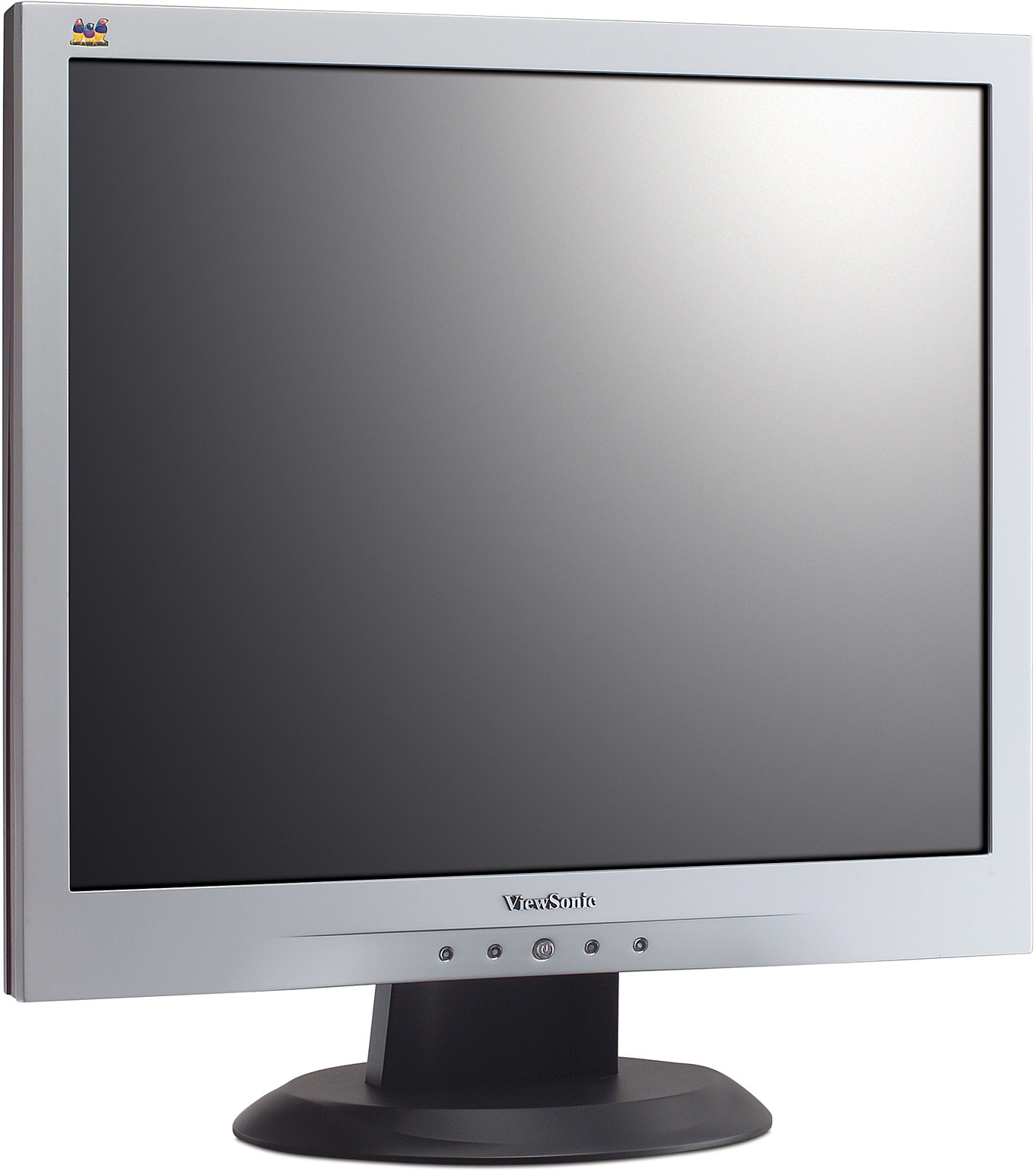

ViewSonic VA703m 43cm / 17" VALUE SERIES LCD MONITOR WITH MULTIMEDIA

Wichtigste Eigenschaften

Produktübersicht

The 43cm / 17" ViewSonic VA703m is the all-in-one price performance solution for all needs. No matter if your use is for entertainment or for intensive graphics, whether in the home or in the office, the VA703m fits the bill perfectly. Its 5ms response time delivers crisp images and fluid full-motion video for games, movies and scrolling text. Matched with 700:1 contrast levels and 300cd/m² brightness, the VA703m displays brilliant, vivid, true-to-life colours. Invisible built-in speakers deliver true multimedia performance. The slim styling and silver-black bezel add to the monitors appeal. Prepare to be impressed by the performance, quality and style of the VA703m.

Besuchen Sie uns

www.viewsonic.com

COLORS

Black

LCD

Typ:	17” TN colour TFT active matrix XGA LCD
Kontrastverhältnis:	700:1 (typ.)
Betrachtungswinkel:	160° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Helligkeit:	300cd/m² (typ.)
Anzeigefläche:	33.8cm horizontal x 27.0cm vertical; 43.2cm diagonal
Optimale Auflösung:	1280 x 1024@60Hz
Reaktionszeit:	5ms (off-on-off) (typ.)
Lichtquelle:	Long life, 50000 hrs. (min.)
Panel-Oberfläche:	Anti-glare (3H)
Pixelabstand:	0.264mm
Farbtiefe:	16.7M colours (6-bit + 2-bit FRC)
Pixeltakt:	135MHz

KOMPATIBILITäT

PC: VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)
ABMESSUNGEN

Physisch mit Fuß: 379 x 400 x 210
ZERTIFIKATE

TCO’03, CE, CB, GS, Ergo, ISO13406-2 (pixel failure class II), UL/cUL, FCC-B, NOM, GOST-R, ENERGY STAR, BSMI, CCC, (PSB), (C-TICK), Green Mark, WEEE, RoHS
LIEFERUMFANG

LCD Monitor, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
AUDIO

Lautsprecher: 2 x 1 watt integrated invisible stereo speakers
ANSCHLüSSE

Analog: 15-pin mini D-Sub (attached cable)

Stromversorgung: 3-pin AC plug (CEE22)

Audioeingang: 3.5mm stereo audio line-in
STROMVERSORGUNG

Spannung: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Verbrauch: 36 watt (max.), <1 watt in power save mode

BEDIENUNGSELEMENTE

Grundausstattung:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

BETRIEBSBEDINGUNGEN

Temperatur: 0°C – 40°C

Feuchtigkeit: 10% – 90% (non-condensation)
GEWICHT

Netto mit Fuß: 3.6kg

Brutto: 4.8kg
VIDEOEINGANG

Frequenz: Fh: 30 – 82kHz, Fv: 50 – 75Hz

Synchronisierung: H/V separate (TTL)

Analog: RGB analogue (0.7 Vp-p, 75 ohm)
ENERGIEVERWALTUNG

Meets TCO’03 and ENERGY STAR standards
SICHERHEIT

Kensington® security port
WANDHALTERUNG

VESA FDMI 100mm x 100mm
ERGONOMIE

Neigung: Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)

Analog:	15-pin mini D-Sub (attached cable)
Stromversorgung:	3-pin AC plug (CEE22)
Audioeingang:	3.5mm stereo audio line-in

Spannung:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Verbrauch:	36 watt (max.), <1 watt in power save mode

Temperatur:	0°C – 40°C
Feuchtigkeit:	10% – 90% (non-condensation)

Frequenz:	Fh: 30 – 82kHz, Fv: 50 – 75Hz
Synchronisierung:	H/V separate (TTL)
Analog:	RGB analogue (0.7 Vp-p, 75 ohm)

Netto mit Fuß:	3.6kg
Brutto:	4.8kg
