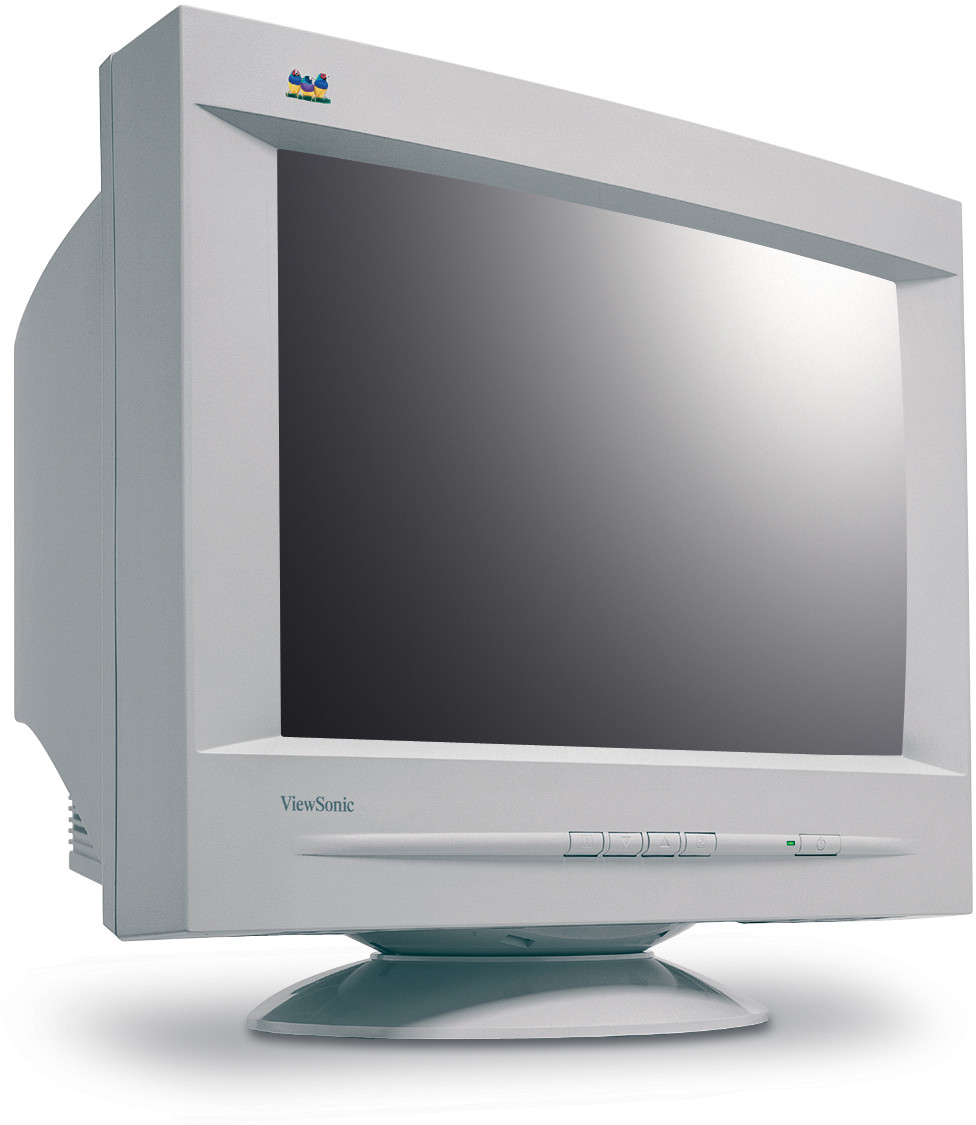

ViewSonic E70 CRT MONITOR 43 cm / 17" (16" VIEWABLE) MONITOR

KOMPATIBILITäT

PC: PC and compatibles (from VGA up to 1280 x 1024 non-interlaced)

Mac®: Power Mac®
ABMESSUNGEN

Physisch (B x H x T): 410mm (W) x 425mm (H) x 402mm (D)
ZERTIFIKATE

CE, CB, TÜV/GS, TÜV/Ergo, MPRII, UL, cUL, DHHS, FCC-B, ICES-003, Argentina-TÜV/S, NOM, PSB, C-tick, BSMI
EINGANGSSIGNAL

Frequenz: Fh: 30 - 70kHz,
Fv: 50 - 160Hz

Video: RGB Analogue (0.7V/1.0Vp-p, 75 ohms)

Synchronisierung: H/V separated (TTL), composite
ANSCHLüSSE

Stromversorgung: 3-pin plug (IEC320)

Signal: 15 pin mini D-sub, attached cable
STROMVERSORGUNG

Spannung: AC 90 - 264V, 50/60Hz (auto switch)

Verbrauch: 75W (typ.), < 2 watt in power save mode

BEDIENUNGSELEMENTE

Grundausstattung:	Power on/off, Key 1, Key 2, up, down
OSD:	Contrast, Brightness, zoom, H/V Size, H/V Position, Pin-balance, Pincushion, Parallel, Trapezoid, Rotation, moiré reduction, degauss, ViewMatch colour adjust (9300K, 6500K, 5000K, User), mode information (ViewMeter), language, memory recall

BETRIEBSBEDINGUNGEN

Temperatur: 0°C to 40°C

Feuchtigkeit: 5% to 95% (no condensation)
GEWICHT

Netto: 14kg
VIDEOEINGANG

Bandbreite: 120MHz (Typical)
ENERGIEVERWALTUNG

Meets MPR II

RöHRENMONITOR

Typ:	43cm / 17" (16" diagonal viewable area), 90°deflection
Punktraster:	0.27mm dot pitch
Phosphor:	RGB P22 medium/short persistence
Glasfläche:	Anti-static, anti-glare, AR coat (TM=50%)

PLUG & PLAY

DDC1, DDC2B
MISCONVERGENCE

0.25mm (max.) at centre
0.35mm (max.) at corner
ANZEIGEFLäCHE

Werkseinstellungen: 310mm (H) x 230mm (V) (typ.)

Maximum Scan: 325mm (H) x 243mm (V) (depending on signal timing used)

PC:	PC and compatibles (from VGA up to 1280 x 1024 non-interlaced)
Mac®:	Power Mac®

Stromversorgung:	3-pin plug (IEC320)
Signal:	15 pin mini D-sub, attached cable

Spannung:	AC 90 - 264V, 50/60Hz (auto switch)
Verbrauch:	75W (typ.), < 2 watt in power save mode

Temperatur:	0°C to 40°C
Feuchtigkeit:	5% to 95% (no condensation)

Werkseinstellungen:	310mm (H) x 230mm (V) (typ.)
Maximum Scan:	325mm (H) x 243mm (V) (depending on signal timing used)
