Key Features
  • Ultra-precise writing with ​50-point PCAP touch, palm rejection, and Write Away™ technology
  • Secure, future-ready performance with upgradable Android 15 OS, EDLA certification, and octa-core processor with 16GB RAM
  • Streamlined device management with ViewSonic Manager
  • NFC login for fast, secure user access in shared workspaces
  • Smart sensors that auto-adjust brightness, monitor ambient conditions, and activate power-saving modes
  • EPEAT Gold certified delivering up to 24% greater energy efficiency than the previous generation.​

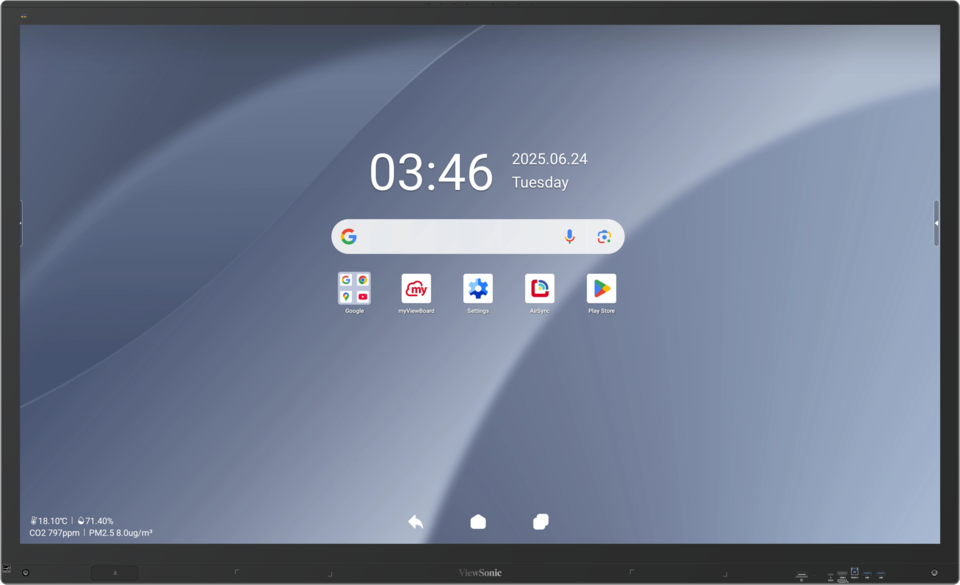

IFP6563-1C
Product Description
The ViewSonic® ViewBoard® IFP63 Series is a 4K UHD interactive flat panel designed for secure, high-performance collaboration in enterprise and higher education environments. With ultra-responsive 50-point PCAP touch, palm rejection, and Write Away™ technology, it enables seamless, pen-on-paper annotation—ideal for hybrid meetings, interactive lessons, and brainstorming sessions. Powered by Android 15 and EDLA-certified, the interactive display provides secure access to the latest apps and updates on a future-ready platform. An octa-core processor and 16GB of RAM support smooth multitasking for demanding workflows, while NFC tap-to-sign-in simplifies access in shared settings. Part of the ViewSonic Business Solutions, it includes three powerful software tools: Manager for remote device management, AirSync for wireless casting, and TeamOne for real-time collaboration. Designed with sustainability in mind, this display features integrated sensors that adjust brightness, monitor environmental conditions, and trigger energy-saving modes. It is certified EPEAT Gold and EEI Level F for efficient, environmentally responsible deployment.
  1. NFC
  2. Power
  3. USB-C 3.2 Gen 1
  4. HDMI 4
  5. Touch 3
  6. USB-A 3.2 Gen 1
  7. USB-A 3.2 Gen 1
  8. USB-C 3.2 Gen1
  9. VESA® Wall Mount (600x400 mm)
  10. OPS Slot
  11. Audio In
  12. USB-C Out
  13. Audio Out
  14. USB-A 3.2 Gen 1*2
  15. Micro SD
  16. HDMI Out
  17. Touch 1
  18. HDMI 1
  19. HDMI 2
  20. HDMI 3
  21. USB-C 3.2 Gen 1
  22. WiFi Slot
  23. Speaker
  24. Power Switch
  25. AC In
  26. SPDIF
  27. LAN
  28. DP In
  29. RS232
  30. Touch 2
  31. USB-A 2.0
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 65"
    Panel Type: TFT LCD module with DLED backlight, ADS
    Display Area (mm): 1428.48(H) × 803.52(V)(64.5” diagonal)
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160(Pixels)
    Colors: 1.07G colors (8-bit+FRC)
    Brightness: 450 nits (typ.)
    Contrast Ratio: 5000:1
    Response Time: 6.5ms
    Viewing Angles: H = 178, V = 178 (Typ.)
    Backlight Life: 50,000hrs (Typ.)
    Surface Treatment: Pencil Hardness 9H with AG+AF+Anti-bacteria
    Bezel: 31.4/31.4/38.9/64.8
    Orientation: Landscape
  • PLATFORM
    Processor: Octa-Core CPU (A76*4 + A55*4)
    RAM: 16GB LPDDR
    Storage: 128GB eMMC
  • TOUCH
    Type/ Tech: PCAP
    Touch Resolution: 32767 x 32767
    Touch Point: Windows: 50 Android: 50
    Palm Rejection: both passive and active pens
  • INPUT
    HDMI: FRONT x1
    (HDMI 2.1) (HDMI support CEC)
    REAR x3
    (HDMI 2.1) (HDMI 1 support CEC, ARC)
    (HDMI 2.1) (HDMI 2, 3 support CEC)
    DisplayPort: 1 (DP1.2)
    Audio: 1 (3.5mm phone jack, mic in)
    RS232: x1
    SD/SDHC: MicroSD card slot x1
    OPS: OPS slot x1
    WiFi: WIFI slot x1
  • OUTPUT
    HDMI: x1 (4K@60Hz)
    Audio: x1 (Earphone out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
    (Speed: 10/100/1000Mbps, WOL supported, ProAV vendor & ViewSonic protocol supported)
  • USB
    Type A: REAR x1 (USB 2.0 support OTG)
    REAR x2 (USB 3.2 Gen 1)
    FRONT x2 (USB 3.2 Gen 1)
    Type B: FRONT x1 (USB 2.0)
    REAR x2 (TOUCH 1: USB 3.0; TOUCH 2: USB 2.0)
    Type C: FRONT x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 65W)
    REAR x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 100W)
    Top x1 (USB 3.2 Gen 1 + PD15W to support Camera mounting)
  • SPEAKERS
    20W x 2 + 20W x 1 (Subwoofer)
  • MICROPHONE
    Built-in 8 Array Microphone
  • TOP CAMERA PLATE
    Yes
  • COMPATIBILITY
    HDMI: 3840x2160 @ 60Hz
    DisplayPort: 3840x2160 @ 60Hz
  • EMBEDDED OS
    Android 15 EDLA
  • BUNDLED SOFTWARE
    Basic Annotation Software: myViewBoard for Android
    Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
    Pro Whiteboarding Software: TeamOne
    Wireless Presentation: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • SPECIAL FEATURES
    All-in-one USB port: USB 3.2 Gen1 “SmartPort USB” to all channels
    Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
    NFC Reader: Yes
    Pen Sensor for supporting Write Away: Yes
    Environmental Sensor: Temperature Sensor x1, Humidity Sensor x1, eCO2 Sensor x1, VOCs Sensor x1, PM2.5 Sensor x1
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    Consumption: On: 88.5W / Off: <0.5W
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 400
  • OPERATING CONDITIONS
    Temperature (º C): 0℃ ~ 40℃
    Humidity: 20% ~ 80% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 58.8 x 35.8 x 3.1in/ 1493.3 x 909.3 x 78.8 mm
    Packaging (inch / mm): 64.1 x 40.9 x 7.3in/ 1628 x 1040 x 185 mm
  • WEIGHT
    Net (lb / kg): 92.8lb / 42.1kg
    Gross (lb / kg): 110.9lb/ 50.3kg
  • REGULATIONS
    cTUVus, FCC, EPEAT, CE, CB, BSMI, NCC, RoHS DoC, WEEE, ErP, Flicker Free, Low Blue Light
  • ENERGY STAR VERSION
    ES8.0
  • EEI RATING
    Level F
  • PACKAGE CONTENTS
    1. 3m power cord by ship area
    2. Type C cable 1.8m(USB-IF certified)
    3. 3m touch USB cable(USB 2.0)
    4. Touch pen x 2 (VB-PEN-101-2C)
    5. RS232 adapter
    6. Quick Start Guide
    7. Clamp x 5
    8. Camera Plate
    9. Screw x 10 (camera 2+4, wall mount 4)
    10. HDMI cable 3m(HDMI LA certified)
    11. Remote control
    12. AAA Battery x 2
    13. Compliance statement
  • COMPATIBLE SLOT-IN PC
    VPC3X Series/ VPCF5-2A Series/ VPCF5 Series/ VPC-A31-O1
